5 channels remixed to 2

[Pierre_Espenan]

Core Machine (Operating system/System info/Roon build number)

Roon on ExaSound PlayPoint and Windows 10 and also R.O.C.K. on a NUC8i7BEH

Network Details (Including networking gear model/manufacturer and if on WiFi/Ethernet)

Asus RT-ACRH13 R.S router, Synology 1515+ NAS

Audio Devices (Specify what device you’re using and its connection type - USB/HDMI/etc.)

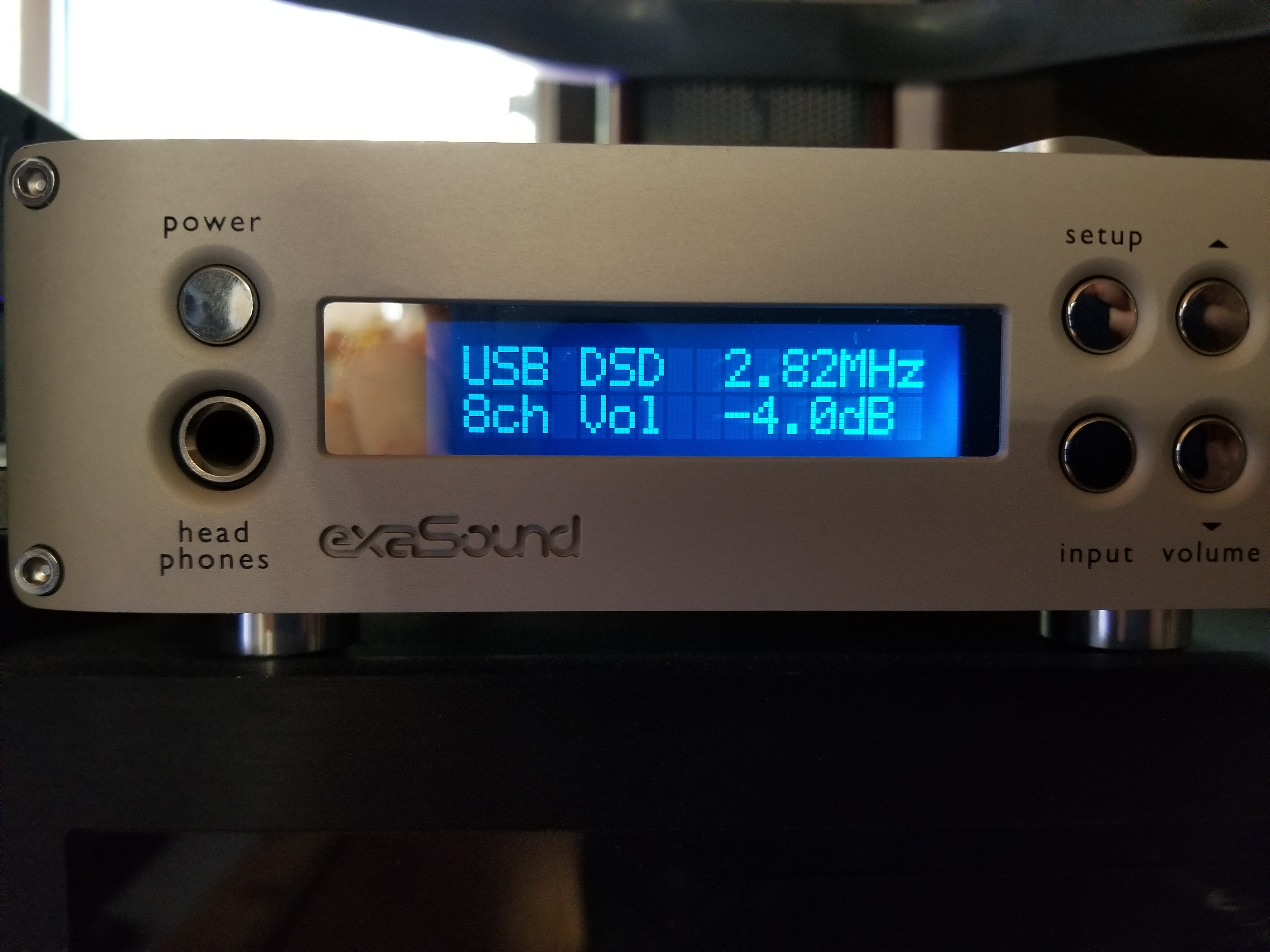

ExaSound PlayPoint with USB output to ExaSound e38 DAC and 8 channel analog output to Marantz SR7012

Description Of Issue

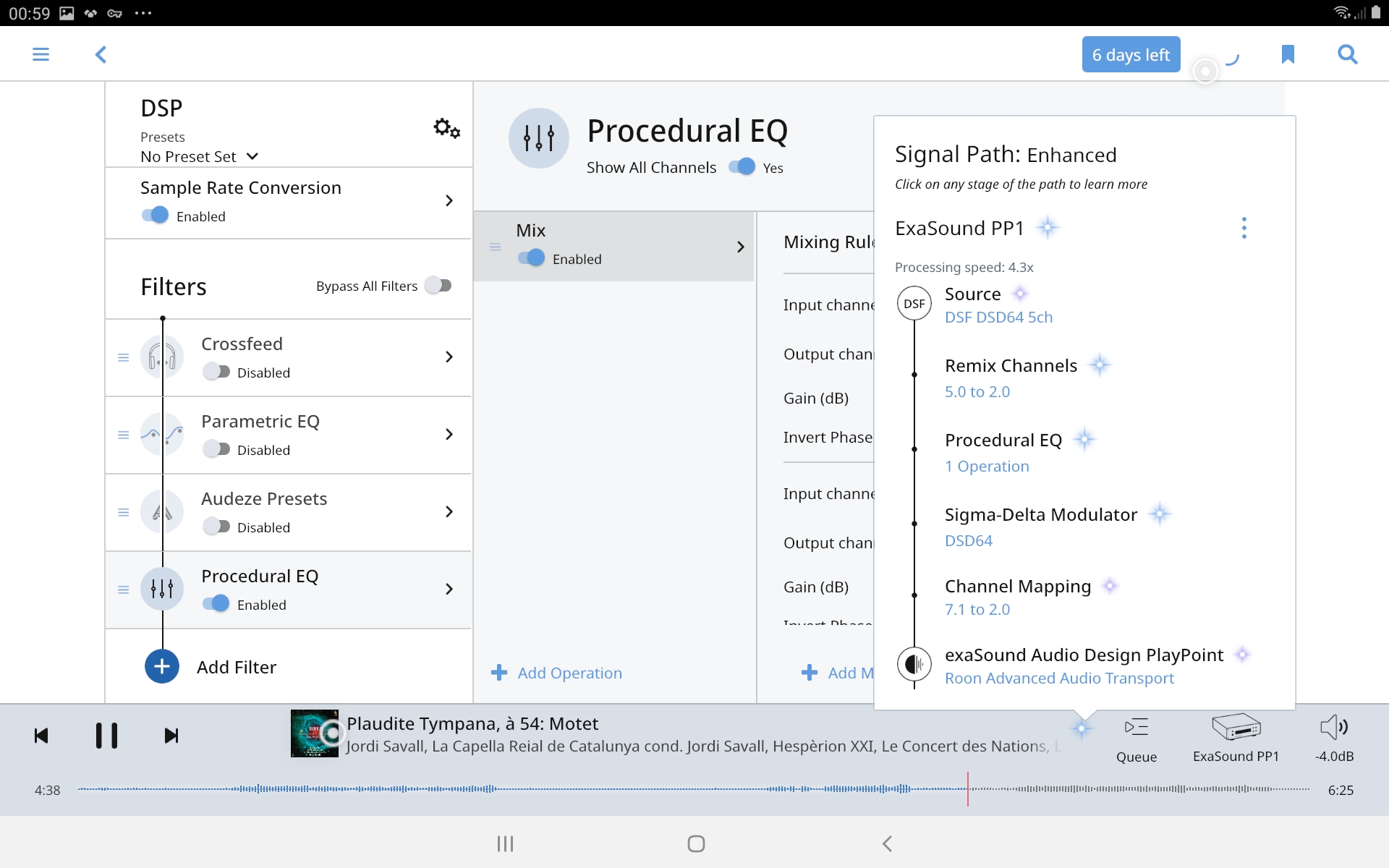

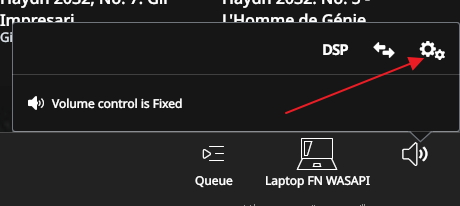

5 Channels remixed to 2. Reason is not clear to me. I have two other apps that play multichannel correctly. DSP settings don’t seem to remedy this.

Add im

ages

[Frank_Nickel]

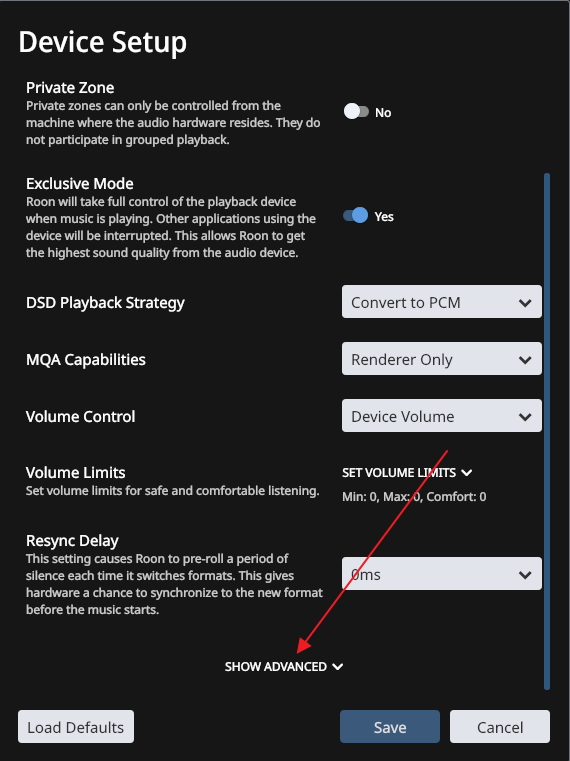

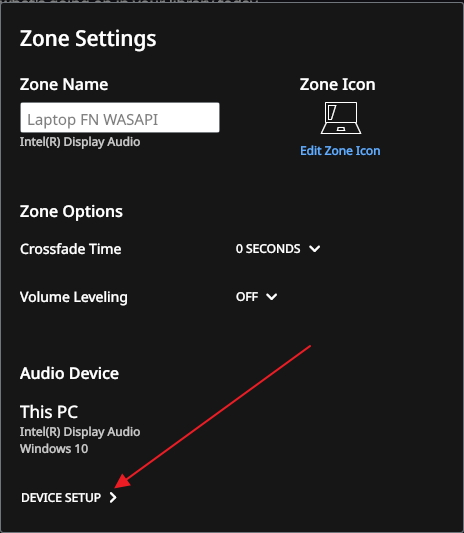

Have you also checked the Device Setup of your ExaSound PPI?

Are there any options to choose on Channel Layout?

[Jeffrey_Robbins]

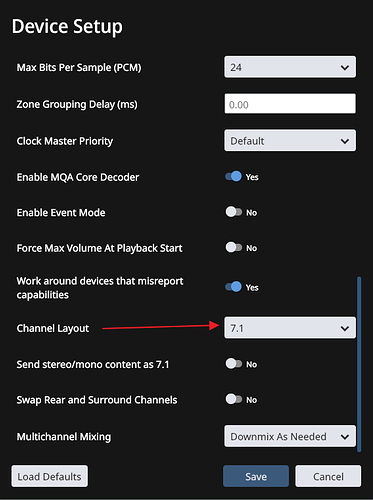

I would select Event Mode and deselect the Work Around. I also see Downmix as Needed. To ensure 7.1 stays 7.1, it should be Channel Mapping Only. If you are doing 5.1 with 7.1 selected, you may also have to swap rear and surround channels. JCR

[Pierre_Espenan]

This worked for me. The option isn’t visible until you scroll down a bit.
