Album Art not displaying on TV with Roon via Denon AVC-X4800H (ref#3EIGA1)

Support
1

Hi! What’s not quite right with Roon?

· None of the above quite fits

None of the above quite fits

· None of these quite match

Tell us what's going on

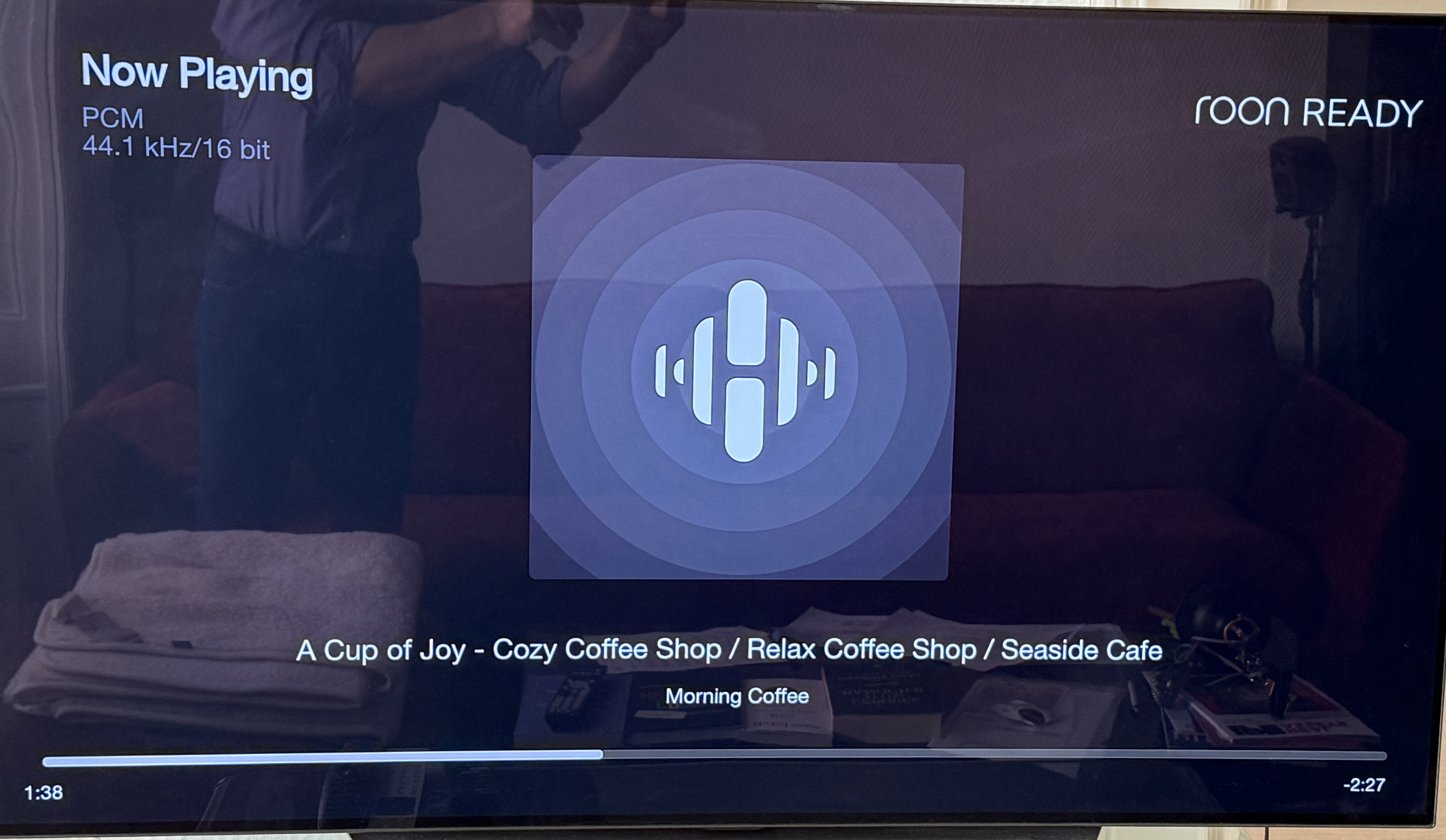

· The Album Art does not display on the TV screen.Everything else works (music playing, Album name, etc.). Is it a bug ?

Any help would be greatly appreciated!

System:
Source: Qobuz
Server: Intel NUC (roon-approved model) running Roon ROCK 2.57 built 1598
End-point: Denon AVC-X4800H, firmware 5000-2193-6035-8850 (i.e., latest version), outputting to LG TV via HDMI
Both connected to router through wired Ethernet network

Tell us about your home network

· Swisscom Internet Box 5 Pro; Netgear switches;

2

Let me clarify that the network firewall is set to automatically authorize all Roon related services (RAATServer, Roon, RoonAppliance, RoonBridgeHelper.app) to receive any incoming connections.

3

Hello @Theodore_ECONOMOU ,

Thanks for your message. Is that a radio station playing or a standard album? Does the same issue happen for regular albums?

5

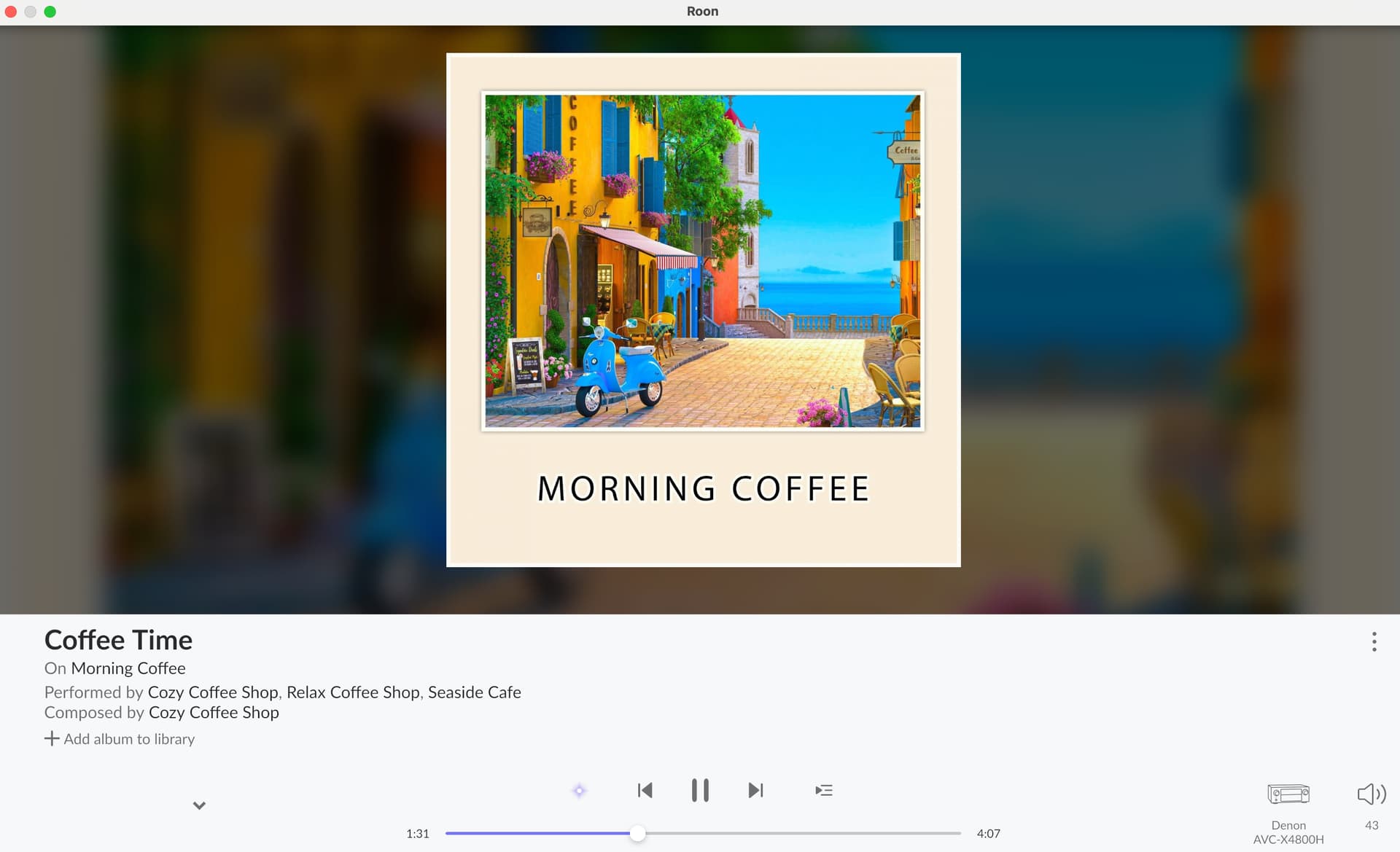

Thank you for looking at this! It is a standard album from Qobuz. Please note that the album’s cover art shows up fine on the Roon app on the Macbook I use as remote.

Capture d’écran 2026-01-16 à 11.17.13
Capture d’écran 2026-01-16 à 11.17.131920×1169 114 KB

6

Let me add, for the sake of clarity, that this problem occurs for any album played on Roon. The one shown here is just an example to illustrate the problem.

Is this a bug, or is there a setting that I need to change?

Would appreciate any advice!

7

Hello @noris , if you were able to find out anything, I would be grateful for any advice!

8

Hi @Theodore_ECONOMOU,

Thanks for the additional information! After discussing your case with our development team, we know that typically, we’ve seen HEOS accurately display album art in the past, so in this instance, the best next step for you would be to reach out to Denon directly and see if there’s a bug in HEOS that’s limiting its ability to show album art:

https://www.denon.com/en-us/customer-care.html

Keep us in the loop with any of your findings - thank you!

9

Hi @benjamin! and THANK YOU for making the effort to look into this and reply. Indeed, I confirm that the Album art WAS accurately displayed UNTIL RECENTLY. Somehow it stopped a few weeks ago. This is just strange.

10

Hello @Theodore_ECONOMOU ,

Thanks for confirming that album artwork was accurate until recently. We suggest getting in touch with Denon using the above link, let us know how it goes!

11

Hi @Theodore_ECONOMOU,

What is the network pathway between your RoonServer machine and the Denon AVC-X4800H? Are these connected to the same router, or is there a managed switch in between?

12

Hi @Theodore_ECONOMOU,

We’re pinging this thread to prevent it from auto-closing due to inactivity - please let us know if you require further assistance.

In the event you need further support but find the thread topic has auto-closed, you can re-open it by submitting a new support request here.

13

Dear @connor, thank you very much for following up. The issue has been solved.

The solution was to effect a “deep soft reset” of the AVC-4800H, on the advice of Microsoft Copilot.

Specifically, pressing the power button for 10 seconds forces the Denon to effect a “micro-controller reset” that restarts the HDMI board, the OSD/graphics processor, the network/HEOS module, and control micro-controller, but without wiping settings as a hard reboot would do. In effect it restarts the part of the AVR that handles metadata overlays, album arti, volume graphics, and HDMI info frames. And that was enough to fix the problem.

Thank you again for your support!
