ARC connectivity issue with Nucleus One after backup transfer (ref#DQ1JOE)

[Mario_Langlois]

What’s happening?

· I'm having trouble with Roon ARC

What best describes your issue with ARC

· I can't log into ARC but I can log into Roon

How can we help?

· I'm having trouble with my Nucleus hardware

Other options

· Other

Describe the issue

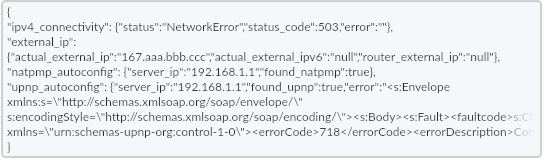

Hello, after installing the Nuleus One server, Arc connected remotely immediately, and after transferring my backups from my PC to the Nucleus server, it is no longer possible to connect remotely. I have the following message: {
"ipv4_connectivity": {"status":"NetworkError","status_code":503,"error":""},
"external_ip": {"actual_external_ip":"167.aaa.bbb.ccc","actual_external_ipv6":"null","router_external_ip":"null"},
"natpmp_autoconfig": {"server_ip":"192.168.1.1","found_natpmp":true},
"upnp_autoconfig": {"server_ip":"192.168.1.1","found_upnp":true,"error":"s:ClientUPnPError718ConflictInMappingEntry"}
}

Describe your network setup

Coaxial internet modem, Routeur ASUS RT-AC1900P, serveur Nucleus One

[Rugby (aka Daniel or Big Dan)]

Your roon server shouldn’t be 192.168.1.1, that should be your router. Did you set a static IP?

You might try resetting the One’s network setting. You can follow directions below to reset network settings on it.

Reset network settings on RoonOS

[noris]

Hello @Mario_Langlois ,

That IP address of 192.168.1.1 is indeed your router, it is strange that it shows up in your Roon settings. I suggest to check the Web UI to ensure that you have set DHCP and not static IP as @Rugby suggested.

[Mario_Langlois]

Hello

By retrying ARC Port Forwarding, as recommended by Roon, I solved my problem. Thanks for your help.
