Internet radio playback issue on Roon but not on BluOS (ref#TMLOBA)

What’s happening?

· Other

How can we help?

· None of the above

Other options

· Other

Describe the issue

I can't seem to listen to Internet radio. Every station I try has the same result. BluOS on my Node endpoint has no issue connecting to any of the same stations.

Describe your network setup

Wired with Cat6. TP-Link unmanaged network switches. Internet access is via an Xfinity modem.

Hi @Dave_Lampson ,

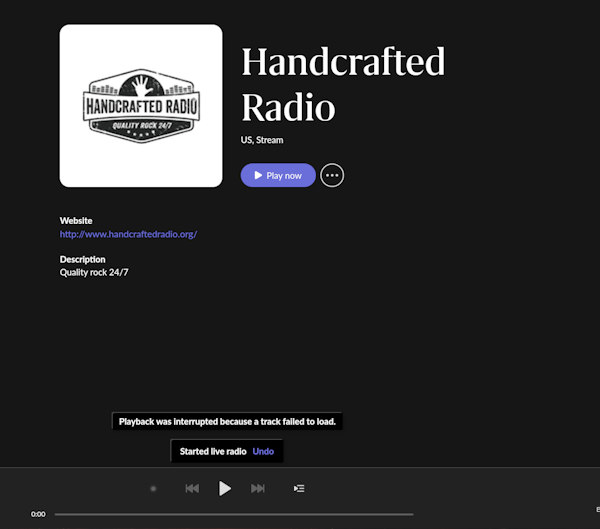

It doesn’t look like I am able to locate that station on my end, is this a custom radio station? If you try to play a station from Internet Radio in the sidebar that is part of our directory, does that work? Does the issue affect FLAC stations as well?

That was just an example. I’ve tried many stations that are listed in Roon Live Radio, including WFMT. Same result. The very first day I got ROCK running I could connect to any radio station. Now, nothing. The message is always “Playback interrupted because a track failed to load”. The Bluesound Node (my endpoint) can connect to any of these same stations without an issue, so I’ve been using that for radio.

Hi @Dave_Lampson,
Would you like to continue to troubleshoot Roon’s live radio feature? If so please reproduce the failure and let us know the date an time that it happened. If not we can just close the thread for you. Let us know what you would prefer.

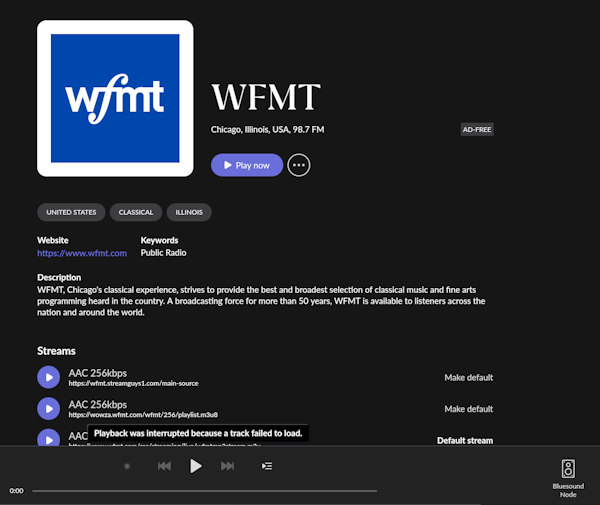

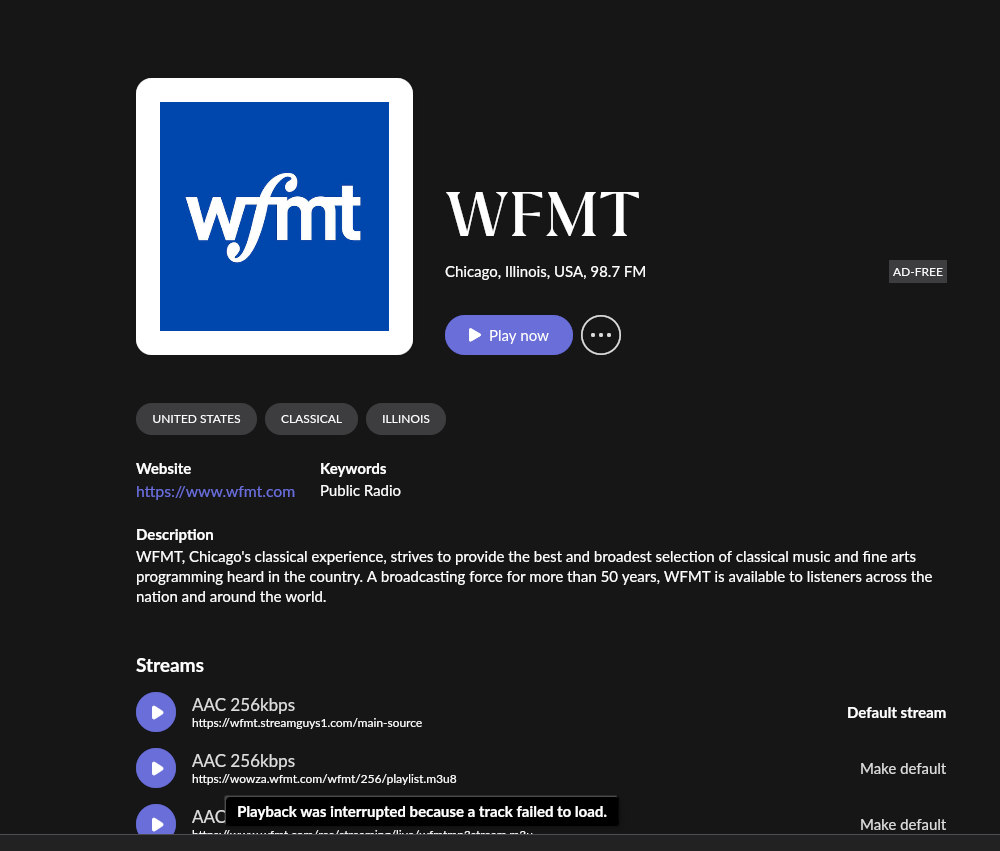

Yes, the live radio feature continues to be a problem. Time and date? Anytime I try an connect to ANY radio station, like just now 1/5/2025 at 10:20AM. Here’s how it looked… after I clicked on WFMT and then clicked on Play Now. It’s the same behavior for all stations and all attempts to connect.

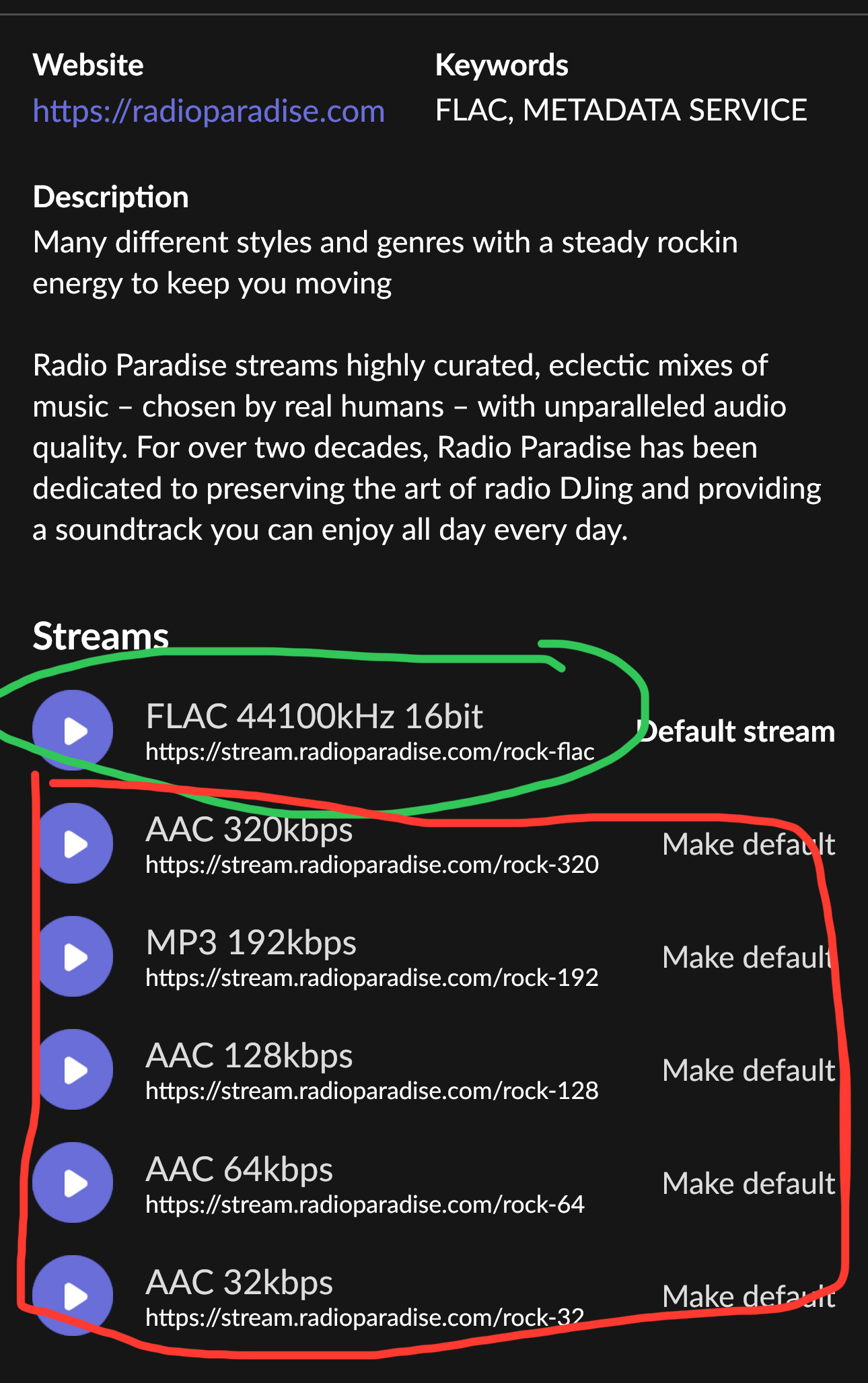

All the streams of WFMT are AAC or MP3. Did you try FLAC streams, too? If not, search for Radio Paradise Rock Mix. It has a FLAC and AAC/MP3 streams. Does the FLAC maybe work and the AAC/MP3 fail?

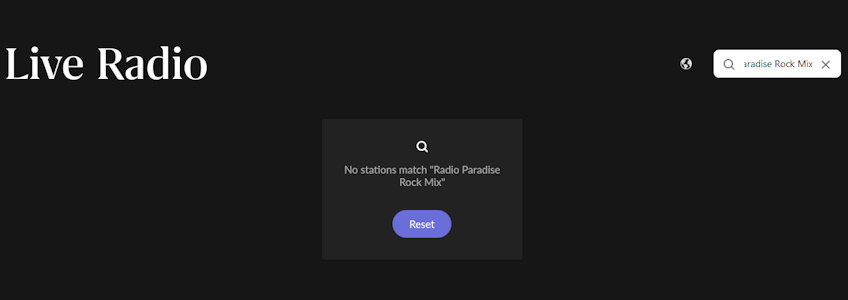

Interesting idea, Suedkiez, but no results found. I can’t find to any of the


Radio Paradise stations via Roon. But, as I said, every stream I’ve tried, regardless of source, returns the same failed results. And the weird part was that on the first day I had ROCK installed it worked perfectly - every station I tried streamed perfectly. But since the second day, nothing. So no radio for over a month now.

This is the filter - this only filters the stations that are already on the Live Radio page (because they are local, have been recently played, etc).

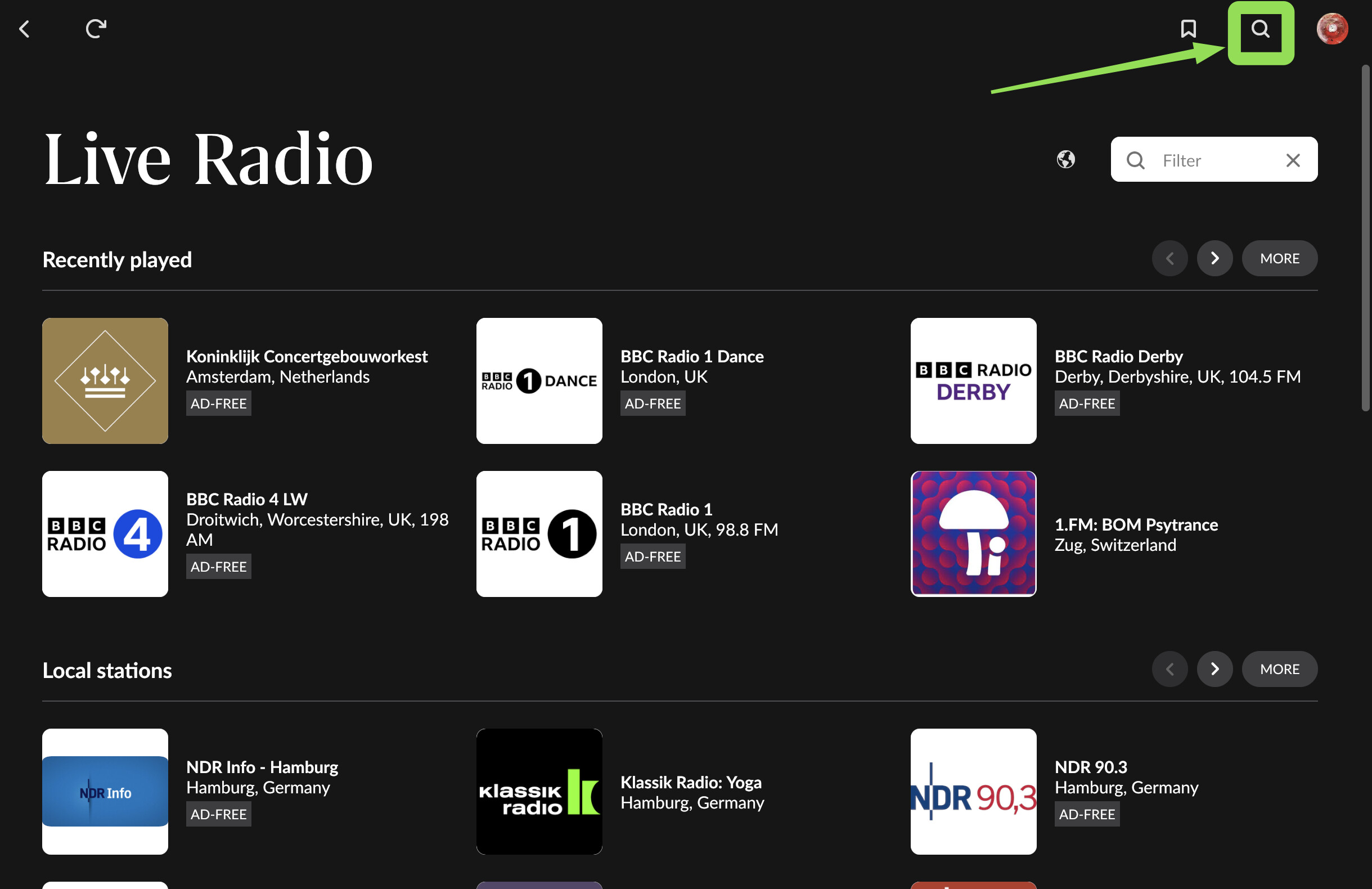

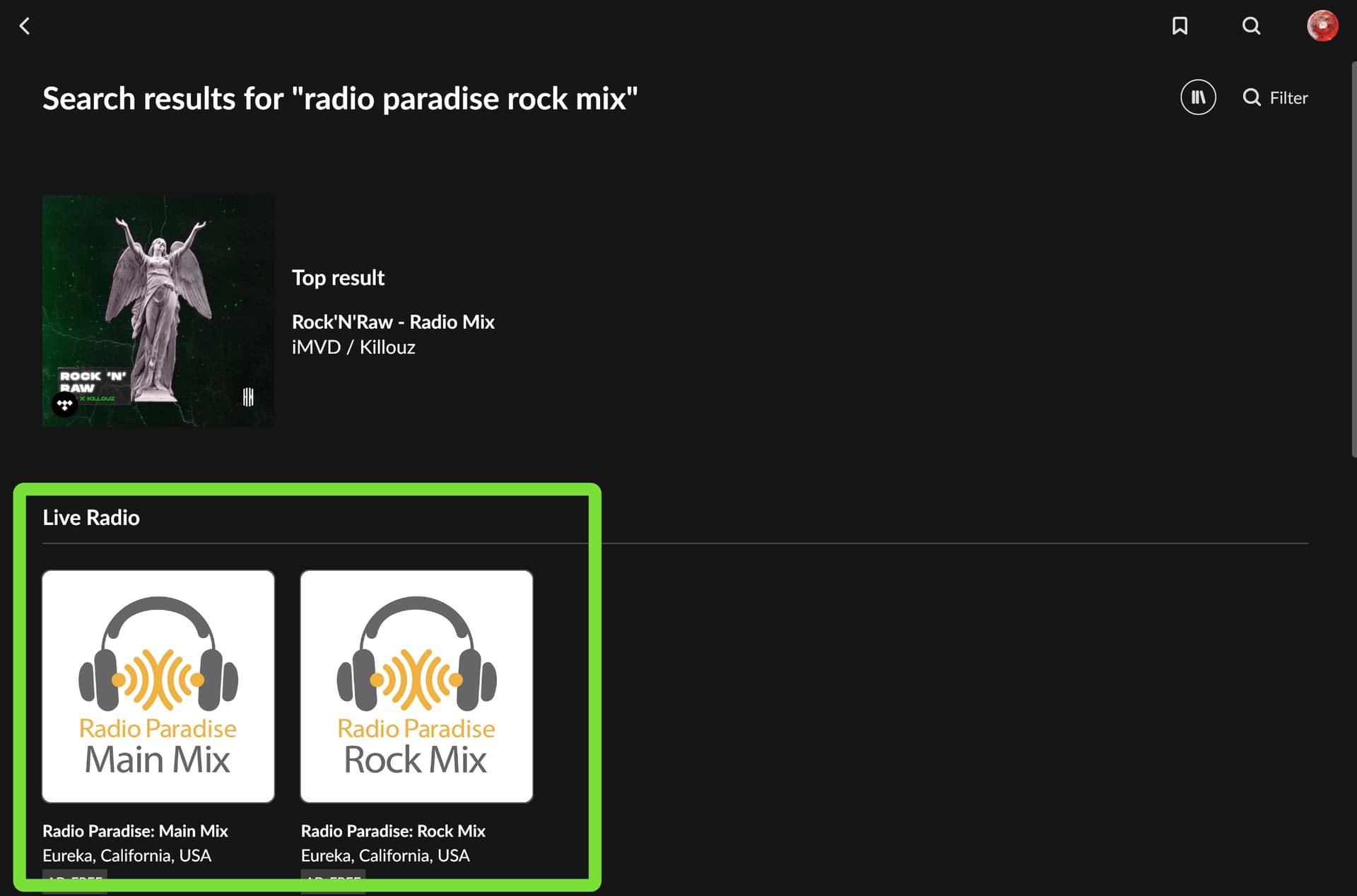

Use the global search instead:

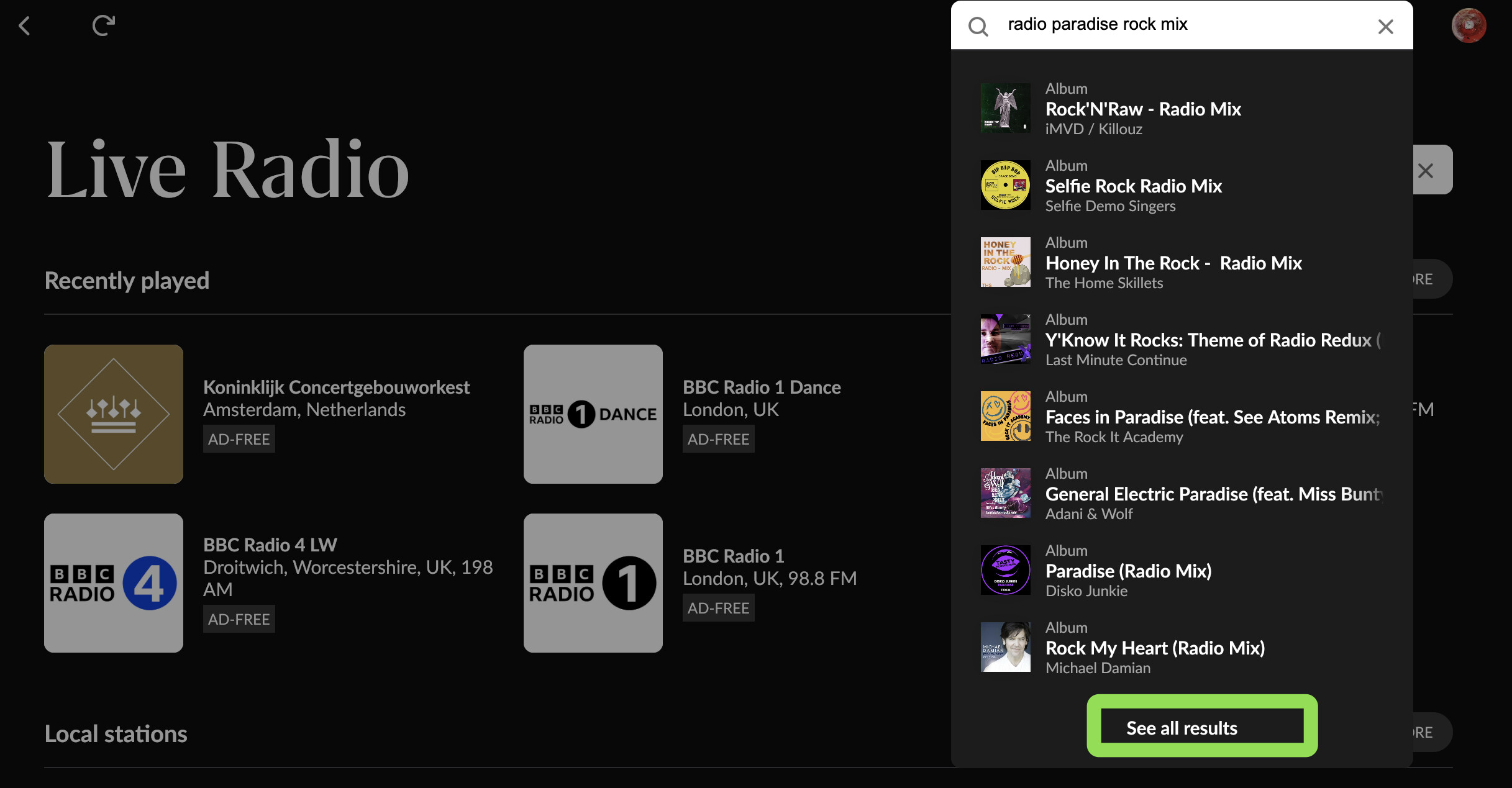

Click See All Results or press Enter:

Great suggestion! It works. So, what does this tell us?

Most likely that you never installed the necessary codecs that are needed by ROCK to decode AAC and MP3. I suppose that when Live Radio worked for you in the past, you just happened to try a FLAC stream.

Provide the codecs to ROCK as described here:

Unfortunately, the instructions don’t seem to match the current software. And reading through the description, I can’t make sense of it? Files in root directories?

Descriptions such as “Note that the file must be called ffmpeg and must live in the /Data/Codecs/ directory in your Roon OS’s network share (so make sure you uncompress the .xz file). The ffmpeg must be a statically linked Linux ELF x64 binary. One place you can get those here: John Van Sickle - FFmpeg Static Builds” tell me absolutely nothing about how to install a codec. Any insights would be most appreciated. I’m really confused because I have a high quality DAC, and I though ROON worked in the digital domain, so why is there any need for a DA codec?

The first steaming station I tried was WFMT out of Chicago. I listened for over an hour. They don’t have a FLAC stream.

Go to http://rock in a web browser. Does it say „missing codecs“?

Yes, sir, it does.

I’ve read through the installation instructions for the ffmpeg (and downloaded a file and uncompressed it), but they seem to apply to Linux. So the installation instructions don’t make much sense in a Windows environment.

OK, so it very much looks like you never installed it. (I know of no case where the codec file disappeared on its own).

What’s weird is that WFMT ever worked for you. MP3 and AAC definitely can’t work on ROCK without installing the codecs first. Maybe they once had a FLAC stream? That’s unlikely, though. But whatever, we know now what is wrong, so we can fix it.

First just a little explanation, though:

The MP3 and AAC codecs are patent encumbered and a commercial entity can’t really distribute them without paying license fees.

They are needed because in Roon the server does all the work and sends the decoded stream (as PCM samples) to the endpoint. As the decoding happens on the server, the server needs the codecs.

On Windows and Mac, they come with the operating system. (On Linux they are easy to install for the user). On Nucleus, Roon Labs installs them out of the box and pays the fees. However, Roon Labs gives ROCK away and they have decided (understandably) that they can’t shoulder the fee for that.

The instructions could be better, indeed. I didn’t write them :slight_smile:

It’s doable, though:

  1. Ensure that you can access the ROCK file system in the Windows File Explorer. If you have music file storage on the ROCK (internal or external by USB), then you know how this works. If not, do this:
  • Open the File Explorer.
  • In the side bar, go to Network. If you are lucky, the ROCK shows up there. If so, doubleclick it.
  • If it doesn’t show up in Network, enter \\rock\data in the address bar of the File Explorer, where it displays the path of the current folder. (NOT in the search box on the right)
  • A log-in window may appear. Try user: guest and password: guest
  • What happens next depends on your Windows version. Either the log-in works or there is an error message. Let me know if there is an error message about not being able to log in without authorization
  • If there is no error message, you should now see the /Data directory of ROCK. (It is not really in the root directory of the machine, but you are prevented from going higher, so it might as well be)

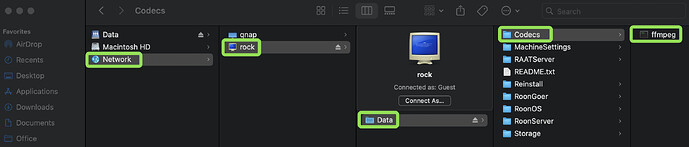

  • Navigate to the Codecs folder. The following screenshot is from a Mac, but you get the idea:

OK, you managed the hardest part. (Again, if you didn’t get this far because there was a log-in error, let me know)

  1. Get and extract the codecs:
  • You already downloaded it from the link, which is fine: https://johnvansickle.com/ffmpeg/builds/ffmpeg-git-amd64-static.tar.xz
  • You should now have a file “ffmpeg-git-amd64-static.tar.xz” on your machine.
  • The *.tar.xz is indeed predominantly a Linux compression format. It is actually packaged twice: The ffmpeg is packaged in tar and the resulting *.tar file is packaged in xz. Hence *.tar.xz.
    (You need the Linux version of the ffmpeg codec because ROCK runs on Linux). Therefore, and because Windows as usual sucks with compatibility, it may not be possible to unpack it with the File Explorer.
  • If you have WinZip installed, use this. If not, get and install the free 7-zip: https://www.7-zip.org/
  • Then, it may be necessary to unpack it twice. (But I am not sure - maybe 7-zip does it in one step). Unpacking the ffmpeg-git-amd64-static.tar.xz may create a file ffmpeg-git-amd64-static.tar. Unpacking the fmpeg-git-amd64-static.tar then should give you a new folder named fmpeg-git-amd64-static.
  • Change into this folder. The ONLY thing you need from there is a single file called ffmpeg. You can delete everything else.

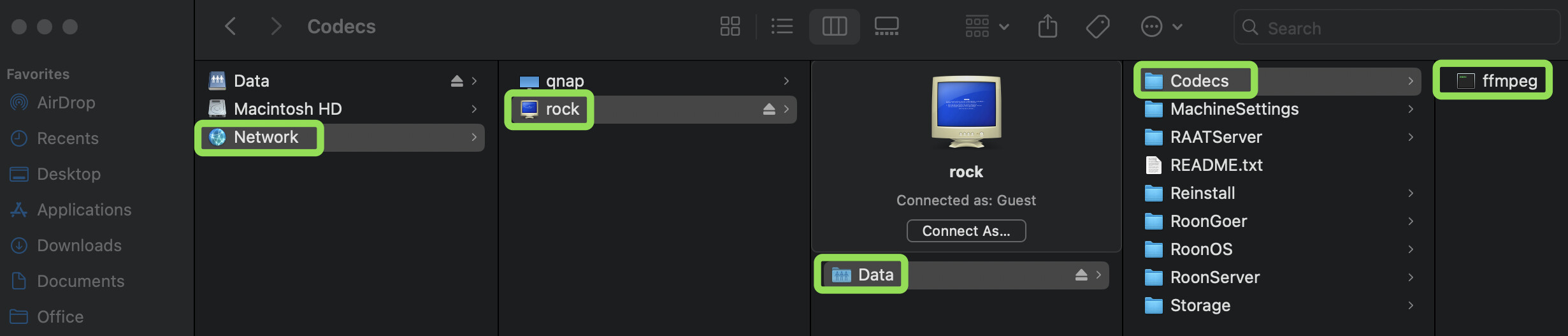

  1. Copy the ffmpeg file to the ROCK into Data/Codecs like in my above screenshot
  2. Reboot the ROCK
  3. Now it should work

@Daniel: The help page really should provide step-by-step instructions that don’t skip over steps that aren’t at all obvious to Windows users. It should also provide separate instructions for Windows and Mac because the steps differ; Mac automatically performs at least the first step automatically after downloading, i.e., the tar.xz → tar decompression.

2 Likes

Wow, I am so grateful for this. Your write-up is clear and concise, and much appreciated. I followed your instructions and put the ffmpeg file in the Codecs folder. Rebooted (power cycled) the ROCK computer (a NUC) and tried to connect to radio. Unfortunately, it still wouldn’t play - same behavior. One bit of ambiguity is which file to download. As my NUC is a Intel-based, I downloaded

ffmpeg-git-20240629-i686-static

rather than what appeared to be AMD codecs. Is that correct?

Once again, thanks so much for the assistance.

No, the one stated in the help is correct, „amd64“. This has historical reasons. (Excursion: AMD builds Intel- compatible CPUs (AMD is not the same as ARM). amd64 is the architectural name for 64bit x86 instruction extensions, designed by AMD and cross-licensed with Intel for x86 compatibility into the 64bit era. Intel had their own design which failed in the non-server mass market, so the regular Intel CPUs ended up with the amd64 architecture as well.)

I am not sure that using the i686 variant is causing the failure, I think it should work, too, just less efficiently. But try with the amd64 version, which is known to work for sure. If it doesn‘t post screenshots of what you are seeing.

1 Like

It worked! I now have radio! Thanks very much.

1 Like

This topic was automatically closed 24 hours after the last reply. New replies are no longer allowed.
