Roon ARC cannot connect to Roon Core

Rob_Langstraat · June 30, 2023, 12:04pm

Roon Core Machine

Networking Gear & Setup Details

Connected Audio Devices

Number of Tracks in Library

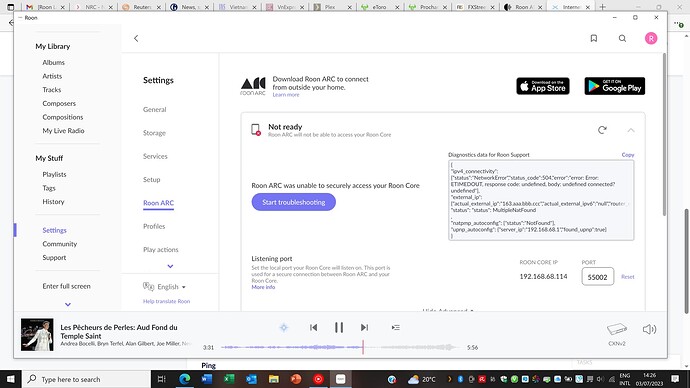

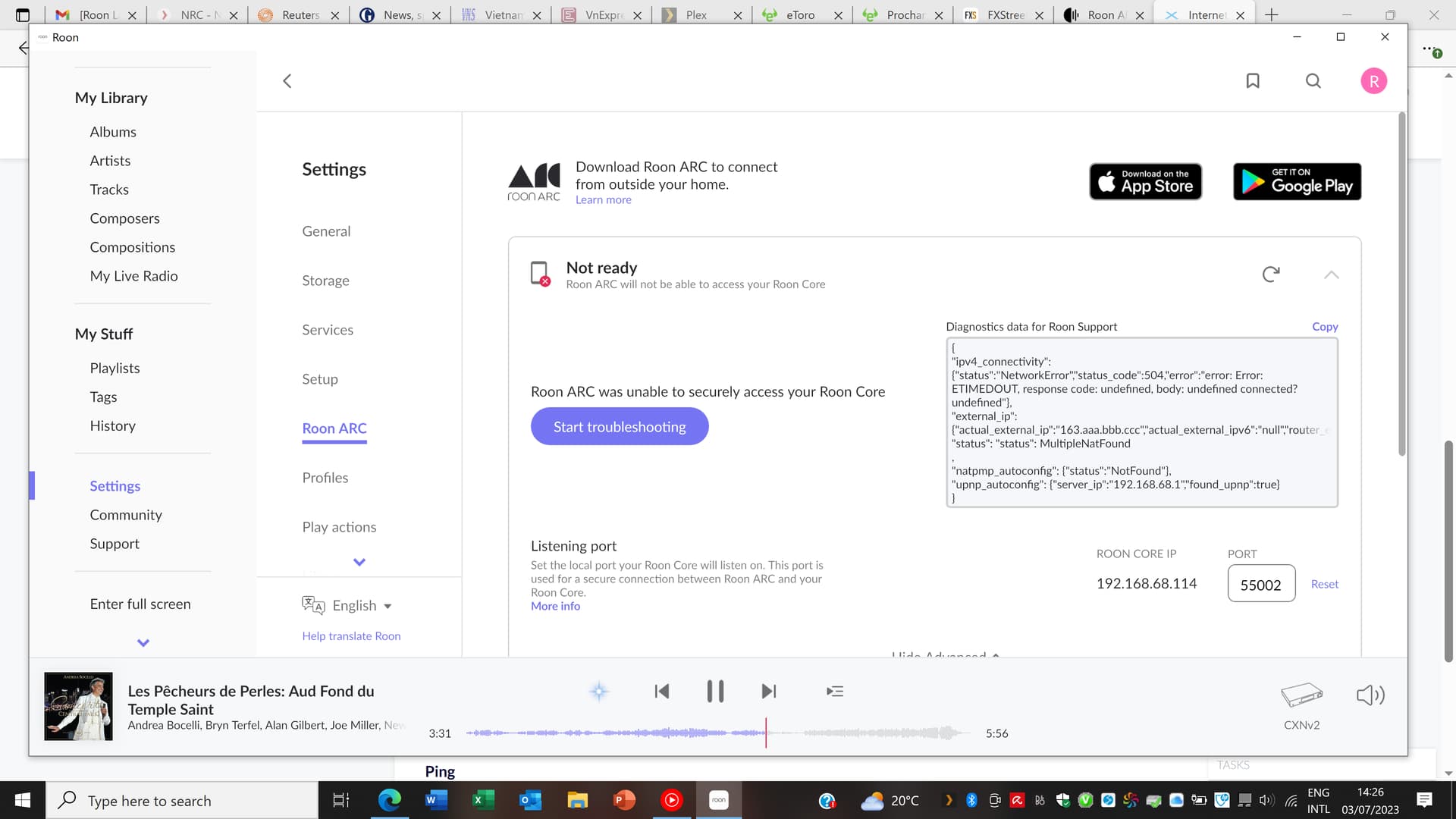

Description of Issue

{
"ipv4_connectivity": {"status":"NetworkError","status_code":504,"error":"error: Error: ETIMEDOUT, response code: undefined, body: undefined connected? undefined"},
"external_ip": {"actual_external_ip":"163.aaa.bbb.ccc","actual_external_ipv6":"null","router_external_ip":"null"},
"natpmp_autoconfig": {"status":"NotFound"},
"upnp_autoconfig": {"server_ip":"192.168.68.1","found_upnp":true,"error":"<s:Envelope xmlns:s=\"http://schemas.xmlsoap.org/soap/envelope/\" s:encodingStyle=\"http://schemas.xmlsoap.org/soap/encoding/\"><s:Body><s:Fault><faultcode>s:Client</faultcode><faultstring>UPnPError</faultstring><detail><UPnPError xmlns=\"urn:schemas-upnp-org:control-1-0\"><errorCode>718</errorCode><errorDescription>ConflictInMappingEntry</errorDescription></UPnPError></detail></s:Fault></s:Body></s:Envelope>"}
}

Ratbert · June 30, 2023, 12:14pm

@Rob_Langstraat Can you supply your network setup details?

Rob_Langstraat · June 30, 2023, 2:02pm

I am sorry, but I am not sure which details you require. Could you be more specific what you need?

Ratbert · June 30, 2023, 2:39pm

Router make, internet provider to begin with, I am just a Roon user trying to help not a Roon employee

Rob_Langstraat · June 30, 2023, 3:14pm

Router is Genexis Platinum 7840. Internet provider is Delta Fiber in The Netherlands. I called them earlier, they are not familiar with Roon, so they could not assist. I enabled UPnP.
Port forwarding IPV4 and IPV6 are empty

mjw · June 30, 2023, 3:20pm

@Rob_Langstraat, to receive appropriate help, it’s best to provide as much information as possible, and complete the template provided in your opening post.

Nonetheless, the diagnostics you’ve provided suggest that UPnP is not properly configured on your router.

Please first try the following steps:

Try to enable UPnP/NATPMP in the web administration interface for the router directly upstream from your Core
Try to manually open the port in your router’s port forwarding configuration

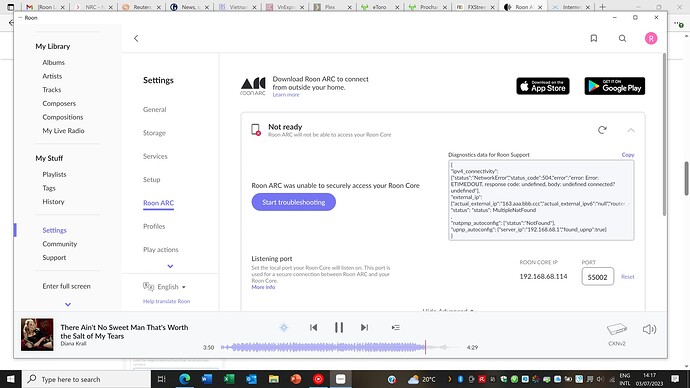

Make sure the IP/Port matches the Port listed in Roon → Settings → ARC
Check for any VPNs or Firewalls that might be interfering
Check if your modem is in Bridge mode

If you continue to experience difficulties, please tag the support team and include the following information:

What is the make and model of your modem and router?
Do you have any additional network hardware, like additional routers or managed switches?
Who is your internet service provider and what is your geographic region?
Is your Modem configured in Bridge Mode so that it operates only as a modem or do you have the ports forwarded on both?

Ratbert · June 30, 2023, 3:29pm

Have you tried adding a port forwarding rule?

Rob_Langstraat · July 3, 2023, 10:00am

The modem is a Genexis Platinum 7840, with a Deco M5 wireless adapter attached to it. My region is The Netherlands.

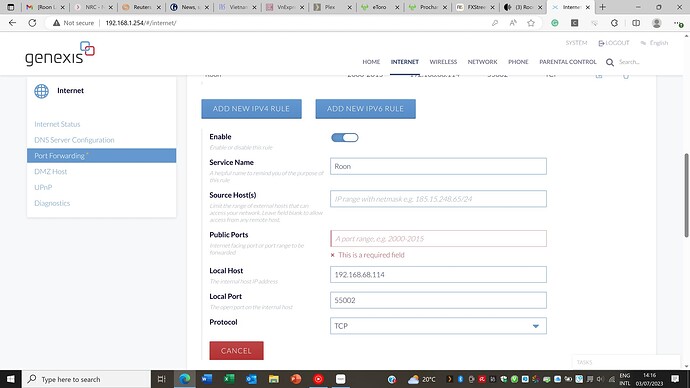

I have enabled UPnP, set the port to the same as in Roon. Don’t know though what to put in at Source Host and Public Ports though. Protocol I have set as TCP.

Rob_Langstraat · July 3, 2023, 10:00am

And, I cannot find anywhere a setting where I can set the modem in Bridge mode

Rob_Langstraat · July 3, 2023, 11:06am

yes i did, but as you can read, some fields to fill in are not clear to me

mjw · July 3, 2023, 11:45am

please share some screenshots of the modem router port forwarding settings, and confirm the IP address of your Roon core.

Ratbert · July 3, 2023, 12:03pm

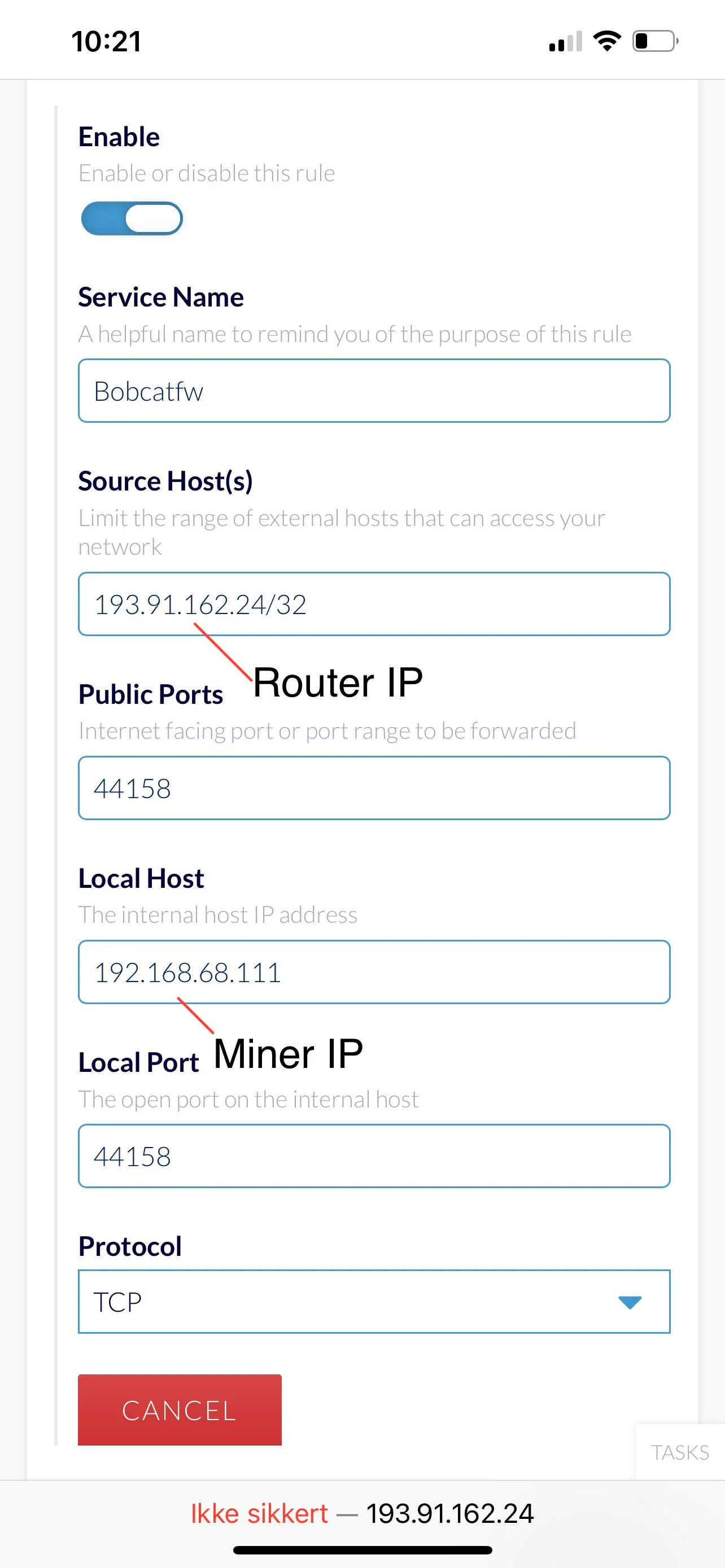

@Rob_Langstraat, is this the port forwarding screen you see?

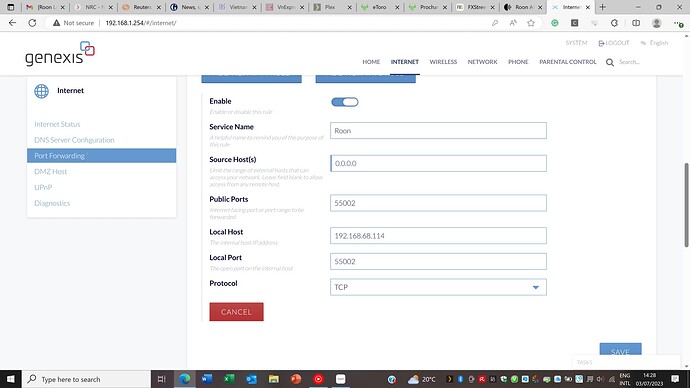

If so try setting ‘service name’ to whatever you want to call it…ARC for example, then ‘source hosts’ to 0.0.0.0/0 then the ‘public ports’ to the port Roon suggests, then ‘local host’ to the Roon Core ip address and finally the local port to the same as the previous ‘public ports’ setting, you will need to save it I imagine and of course remember to enable it (top of the screen).

mjw · July 3, 2023, 12:09pm

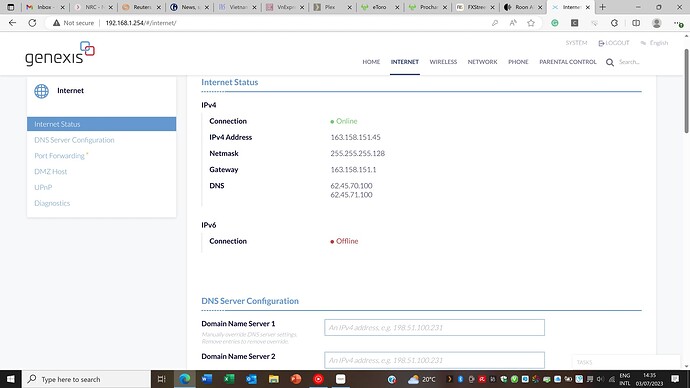

Something doesn’t look right there. The router isn’t using a private network address, e.g., 192.168.68.0, and is a different subnet to the core. Both devices need to be on the same subnet for Roon to work.

Please provide details of all network equipment you have, and describe how the core is connected.
