Roon Version 2.0 (build 1219) on Synology DS916+ as Media Server.
Roon App on an IPad 4 (OS 16.3.1). The Synology Firewall allows UPNP on the ports 55001 & 55002
Networking Gear & Setup Details
Lancom 883 VoIP, Portforwarding 55000 - 55010. Ethernet Connection not using VPN.
Who is your internet service provider? Deutsche Telekom (T-Online)
Please list the make and model of your modem and router?
Lancom 883 VoIP
Do you have any additional network hardware, like additional routers or managed switches? No
Does your network have any VPNs, proxy servers, or enterprise-grade security? No
Connected Audio Devices
TV HDMI & Ethernet, Panasonic BD Player & Cable TV Receiver HDMI & Ethernet, BD Player HDMI & Ethernet Apple TV, HDMI & Ethernet Arcam AV Receiver HDMI & Ethernet, Synology Nas Ethernet
Description of Issue -
What is the exact port forwarding error message you see in the Roon Settings → ARC tab? Roon ARC won‘t be able to access Roon Core.
This is the log file:
I have made all the recommended settings in the NAS including port forwarding in my Lancom router. Unfortunately, I always get the above error message.
Yes i think so. In the firewall settings of the Synology I’ve opened the ports 50001 and 50002 which are the UPNP ports. In the ARC Setting in Roon it shows 50002.
When i start the app it shows „RoonMedia“, which is the location of the Roon Core,
but it tells that I have no access from outside……
Yes. From a quick read the Lancom is a bit more advanced than a normal consumer router. Because of that, it does not modify the firewall just because you added a port forwarding rule. You need to modify the firewall to match the port forwarding.
Digging around a little for instructions specific to Lancom, I believe you’ll find an index of port forwarding rules that you can manage by entering the administration page for your LAN and navigating to IP router > Masquerading > Port forwarding table. It’s known as “inverse masquerading” in the parlance of Lancom’s systems.

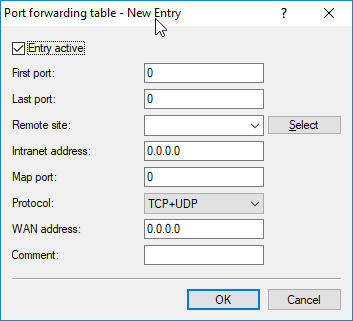

You’ll need to specify a start and end port. The interface should resemble the one below. These port assignments should be identical and should match the Port number listed in Roon → Settings → Roon ARC (usually in the ~55000 range). List the static IP address of your Roon Core in the Intranet address field.
ok, good then its not a firewall issue. Support may have to help you from here. I’d need to know more about your network configuration to understand. Real IP addresses, topology, etc.
