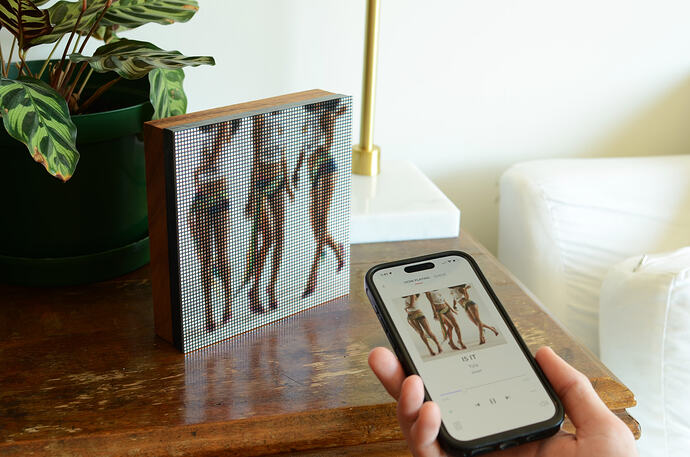

After a few months of hard work, I’m excited to let you all know that you can now set up a Tuneshine to connect directly to Roon. Tuneshine is a lo-fi album art display that’s meant to be a tasteful, understated, and joyful addition to your living room, office, or anywhere else you listen to music.
A lot of Tuneshine users have been using last.fm as a bridge between Tuneshine and Roon, but I’m happy to say that you can now set it up directly to talk to Roon over your LAN. The integration is completely cloud-free and does not require an account, and the art updates in about <1 second with a couple of options for animated transitions.
I believe it should show the station image, but I just checked and it looks like I actually have a bug and I’m not constructing the image URL correctly for live radio stations. I will let you know when I fix this!
After setting up Roon in the Tuneshine app and enabling the extension in Roon settings how do I choose the zones for Tuneshine? No Tuneshine listed under Displays in Roon settings. Any help appreciated.
The zone selection happens in the Tuneshine app, but if you have a very large number of zones you may need to install a beta version of the latest firmware that will be coming out soon which increases the maximum size of the zone payload. I saw I got an email from you as well—I’ll send you the details there.
Hi Tobias - just got my Tuneshine and looking forward to using it with Roon. I am having trouble getting it up and running though. I cannot get past the “Connecting to Tuneshine…loading configuration” page on the app. Have uninstalled/reinstalled the app and tried on both my iPhone and iPad. Have also tried unplugging/replugging the Tuneshine. I’m stuck - hope you can help. Thanks!
Hi @TobiasFromTuneshine! I just got my Tuneshine a few days ago and have synced it with Roon. It works for a while but then stops syncing and just shows stale artwork. It seems it works intermittently. When it stops syncing with Roon I’m also unable to connect through the app. Any suggestions?
It’s likely that this is due to some Wi-Fi shakiness between the Tuneshine and your Wi-Fi. The first thing I would try is setting your 2.4GHz Wi-Fi in your router settings to manually use channel 1, rather than having it auto-select the channel. This can often result in a much more stable experience. Let me know how it goes!
Hi, great news, doesn’t work for me though. I have reset my Tuneshine and tried to connect it to Roon. It then tells me that the “Roon core” could not be found. I tested all the WiFis I have. Any ideas? I run Roon Server on a Linux system and, so far, haven’t had any connection problems.
Hi Val, sorry to hear that. A few things I would check:
Do any of your networks have any sort of client isolation features that would prevent the Tuneshine from reaching the Roon server over the same subnet? E.g. connecting from guest network to main network, or other security features
Try running these commands on the server to verify that the Roon server is advertising as expected:
sudo ss -ulpn | grep 9003 - checks that the Roon Server is binding to port 9003. You should see something like UNCONN 0 0 0.0.0.0:9003 0.0.0.0:* users:((“RoonServer”,pid=1234,fd=42))
ip maddr show | grep 239.255.90.90 - confirms the server can receive multicast queries. You should see something like inet 239.255.90.90
Server passes all the tests and a connection to the Roon Core is now possible inside the primary WiFi. Not sure what the problem was. Too bad it doesn’t work with the secondary (and more stable) WiFi.
Thanks Val. It could be something to do with how the subnets are configured. I think that if the secondary Wi-Fi is plugged in to the primary router and has its own routing table it’s possible that the Tuneshine isn’t able to discover across the networks.
