ARC for nitwits

[Jos_Galgenbeld]

sorry I’m not a network specialist, I like to listen music, even worce: I don’t understand a word of all these shortcuts.
Even with te tekst below here I can not manage.

For the record: of everything I have the latest updates (Os-X, Router, Roon)
The comments for the problem are

{

"ipv6_connectivity": {"status":"NetworkError","status_code":504,"error":"error: Error: ETIMEDOUT, response code: undefined, body: undefined connected? undefined"},

"ipv4_connectivity": {"status":"NetworkError","status_code":504,"error":"error: Error: ETIMEDOUT, response code: undefined, body: undefined connected? undefined"},

"external_ip": {"actual_external_ip":"62.kkk.lll.mmm","actual_external_ipv6":"2002:aaa:bbb:ccc:uuu:vvv:www:xxx","router_external_ip":"null"},

"natpmp_autoconfig": {"status":"NotFound"},

"upnp_autoconfig": {"server_ip":"192.168.178.1","found_upnp":true,"error":"<?xml version=\"1.0\"?>\n<s:Envelope xmlns:s=\"http://schemas.xmlsoap.org/soap/envelope/\" s:encodingStyle=\"http://schemas.xmlsoap.org/soap/encoding/\">\n<s:Body>\n<s:Fault>\n<faultcode>s:Client</faultcode>\n<faultstring>UPnPError</faultstring>\n<detail>\n<UPnPError xmlns=\"urn:schemas-upnp-org:control-1-0\">\n<errorCode>606</errorCode>\n<errorDescription>Unknown Error Code</errorDescription>\n</UPnPError>\n</detail>\n</s:Fault>\n</s:Body>\n</s:Envelope>"}

}

I.ve done the best I can in my fritz!box 5590 to look at upnn and nat and forwarding

Can I please get help in simple tekst or screenshots how to manage this?

[Ratbert]

Message sent.

[Martin_Webster]

@Jos_Galgenbeld, to take a screenshot on your Mac, use these instructions.

Take a screenshot - Apple Support

To post in the forum, uses these.

Take a screenshot - Apple Support

PS. I tidied up your opening post, so the Roon message is easier to read.

[Ratbert]

@Martin_Webster I think Jos wanted guidance screenshots rather than guidance on how to take a screenshot?

[Jos_Galgenbeld]

Yess thank you @Martin_Webster and @Ratbert ; yes making screenshots is not the problem. Getting Arc to work would be great. Thanks for your message Ratbert, I I will answer that first now.

[connor]

Hi @Jos_Galgenbeld,

Put simply, this error code means that UPnP is not properly functioning in the router. UPnP autoconfigures port forwarding for ARC. If it’s not working, there are usually two workarounds:

1. First, enter the Fritz!Box settings and turn UPnP off and back on. Restart RoonServer. UPnP should be prompted to autoconfigure ARC again.

2. If that doesn’t work, then re-enter the Fritz!Box web administration page and turn UPnP off entirely. Instead, in the Port Forwarding section, create a TCP-protocol port forwarding rule that points to the Port Number and IP Address listed in Roon Settings → ARC>

If you’re still stuck, then you’re likely up against a level of carrer-grade network address translation put in place by your internet service provider. This would be outside Roon’s control, unfortunately, but you can often work around it by requesting a dedicated IPv4 address, native IPv6, or installing a peer mesh VPN like Tailscale.

Please post here once you’ve tried steps 1 and 2 above and we’ll continue to help you.

[Jos_Galgenbeld]

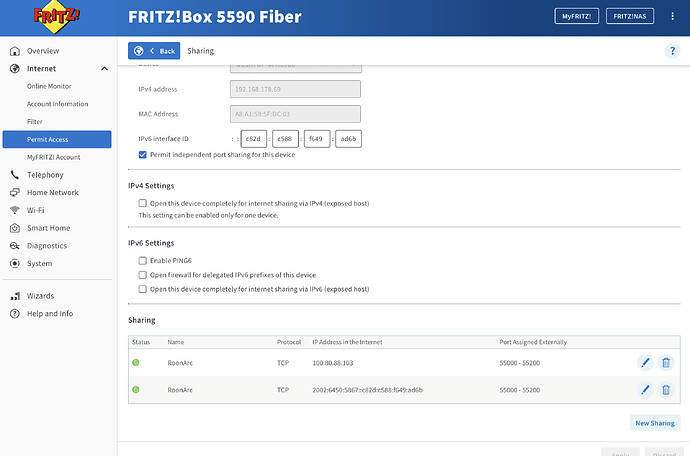

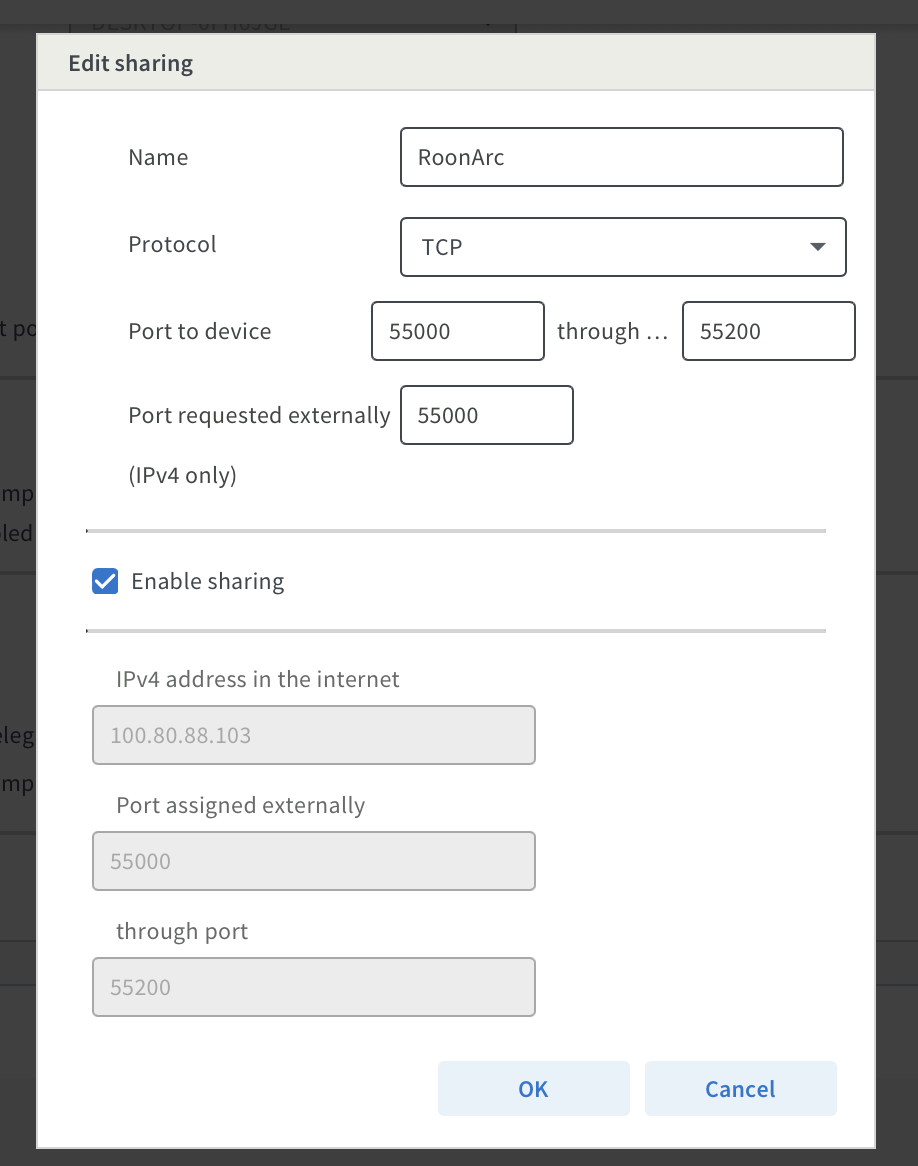

Hello @connor thank you . number one : tried ,no result. No 2 As far I could I tried. No result. See screen shot.

Can you do something with this info?
