Best native DSD DACs for use with HQPlayer?

If you have the needed amount of RAM and you are OK with a bit of extra boot delay, it is fine. I use it too on my UP Gateway. Since it doesn’t have easily accessible proper power button to start/stop the system nicely, and it is running 24/7/365.

The storage used to boot it up doesn’t affect the choice of image.

I’m not sure what you are referring to here?

It is not very useful, but you can login as “root” if you want to, there’s no password.

Then you would likely want to use the regular NAA OS image instead. Since it has now (IIRC) has ssh server included. You just need to create a user account and set password for it to be able to remotely login.

Not included on ramfs version, since any such things would get lost on every reboot.

Switch on the mains power cable/socket/bar?

Yes, seems to be. And that’s how I expected it to be, since the 44.1k is mentioned first = 0 and 48k is mentioned second = 1. But maybe it’s just my programmer’s logic… :sweat_smile:

1 Like

seems like an efficient solution, to minimise LEDs and keep that price down ! :smile:

For my click/plop problems when changing the frequency of songs, I put “Adaptive rate” in gray instead of checked in output. There seems to be a lot less of this click/plop phenomenon.

  1. With “Adaptive rate” checked:
    44.1 and multiples => DSD256
    48 and multiples => DSD256x48

  2. With “Adaptive rate” grayed out:
    44.1 and multiples => DSD256x48
    48 and multiples => DSD256x48

I would tend to think that 1) is better in terms of frequencies, but I don’t hear any particular difference when listening between 1) and 2)

I have to return my friends Cyan2 tomorrow.

I think I have to join the cool kids and get a Holo :grin:

Well done Jeff at Holo and Kitsune for making this affordable classic

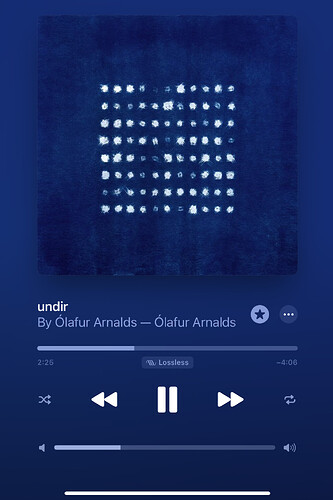

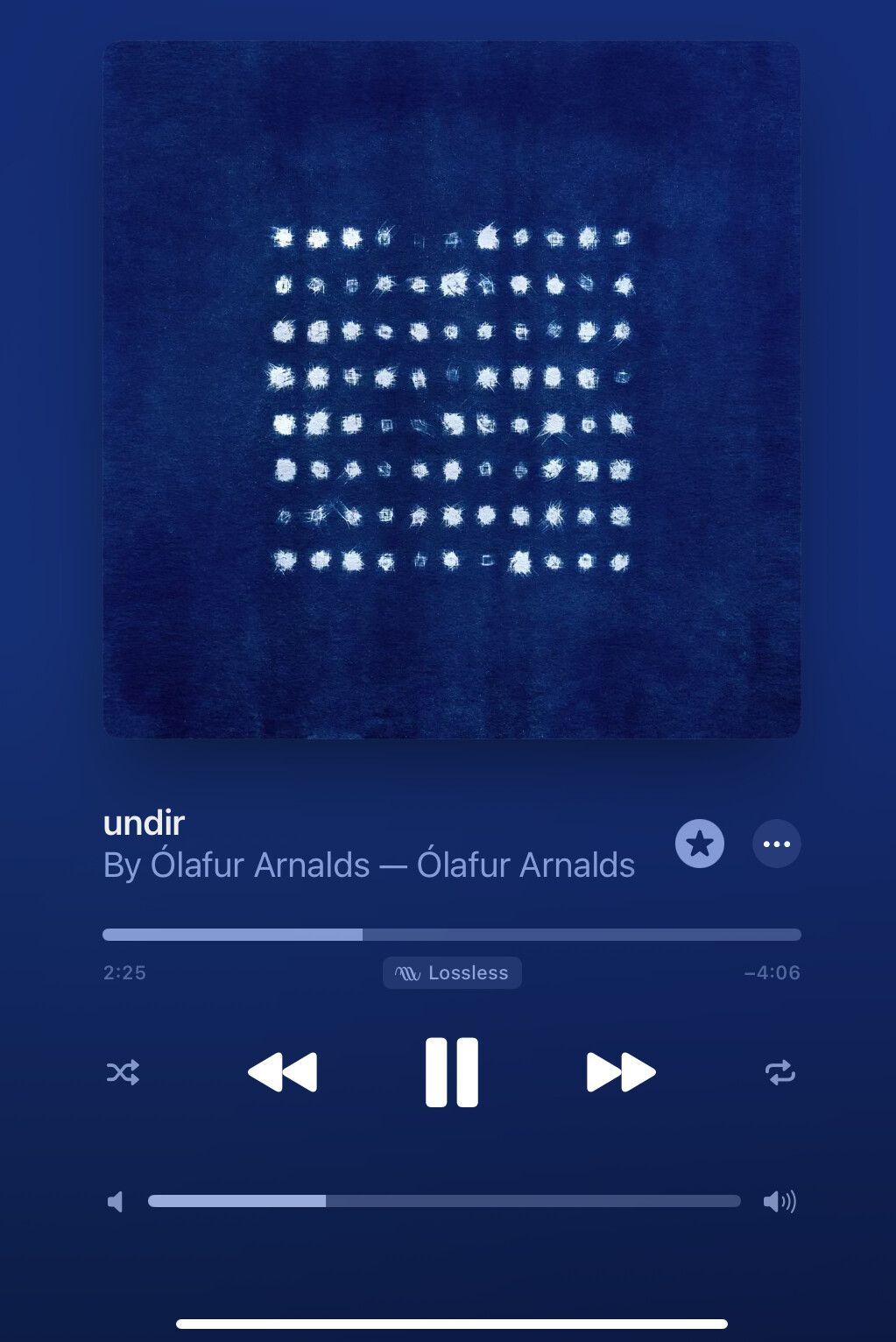

Currently enjoying this from Apple Music → HQPlayer DSD256 → Cyan 2 → Topping A70Pro → Hifiman Sundara with PEQ by HQP :ok_hand:

4 Likes

Do you’ve also tested the automatical input switching? Is this working without problems?
I’m thinking to buy a further Holo Audio DAC (very satisfied with my May, but here I’ve a remote) for my bedroom.

Haven’t tried because I would only feed this with DSD256 via USB.

From what i read from other users, you need to physically unplug USB for it to ‘automatically’ switch to another input.

A nice ‘feature’ to keep the price down ! :smile: No complaints from me

I would have Cyan2 direct USB connected to my Mac Mini. There is no ‘noise’ I measured from the Mac to the DAC output, even with Chrome browser playing 4K video.

Cyan2’s USB input is top notch clean as a whistle.

3 Likes

Ah, but which one?

Good album that too!

1 Like

Definitely Cyan 2. It keeps more budget for Cyan 3, 4 , 5 :smile:

It seems Jeff at Holo is only improving performance with each generation.

Maybe those future gens will feature NAA input… if even people ask Kitsune.

3 Likes

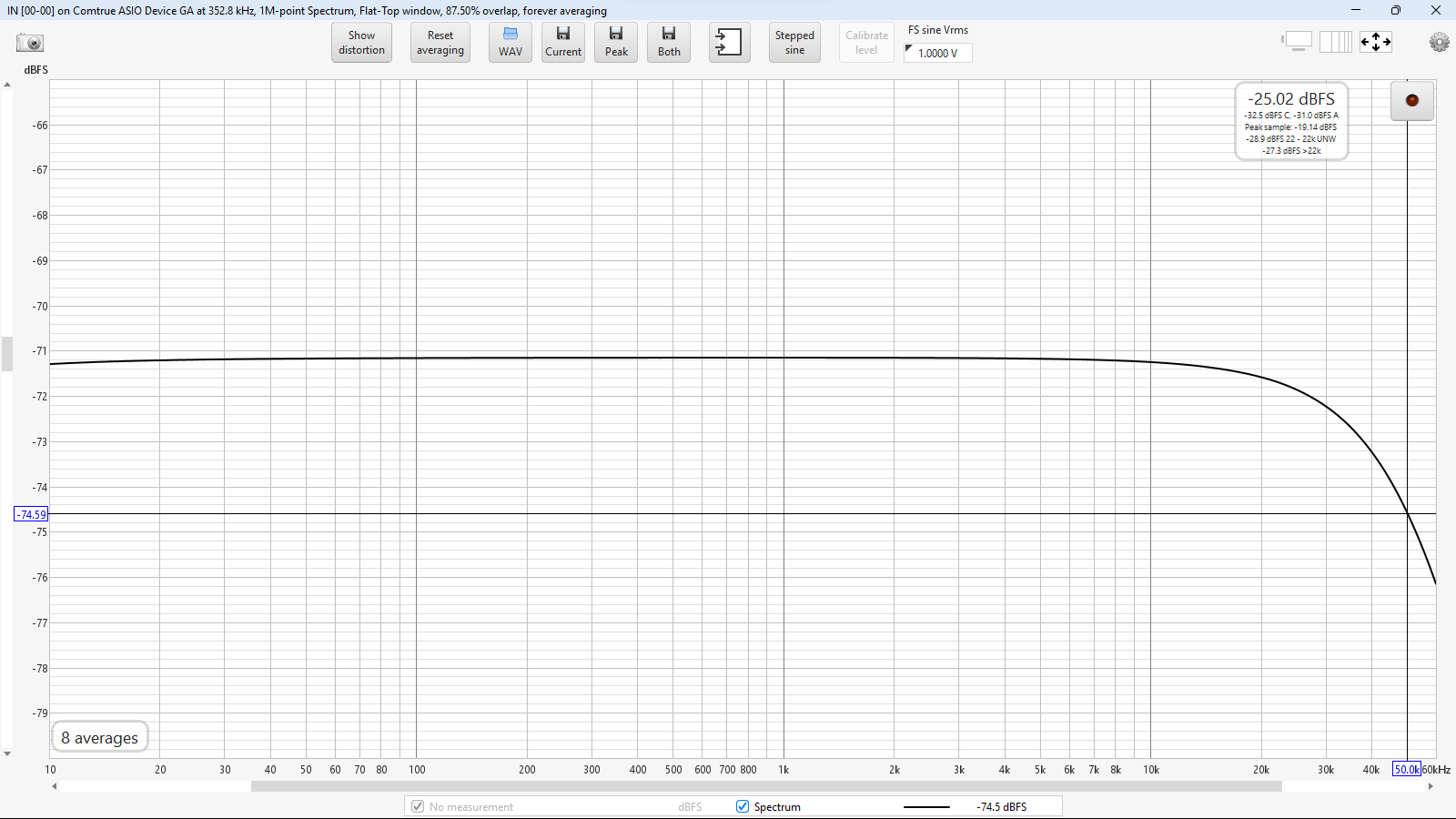

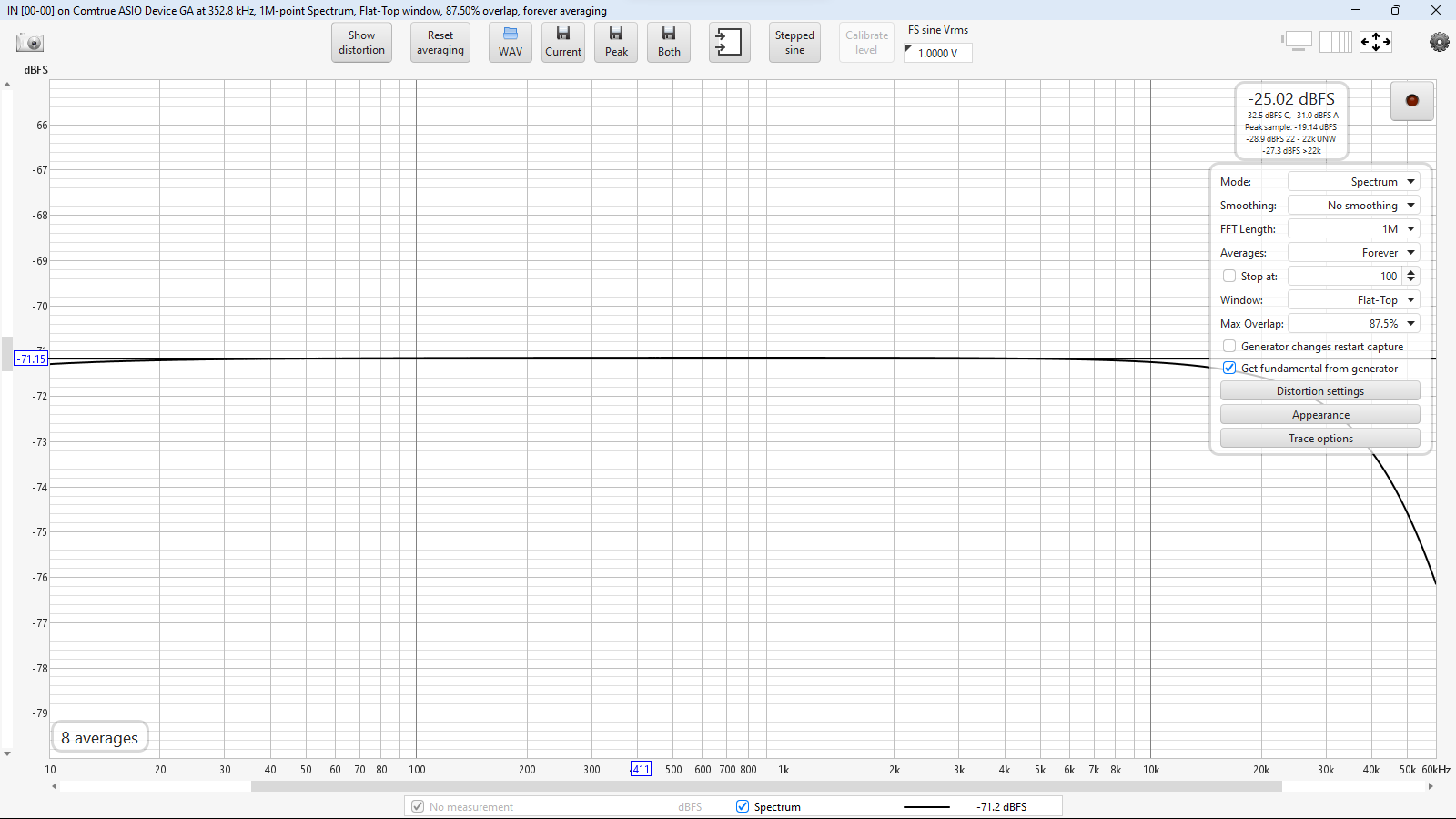

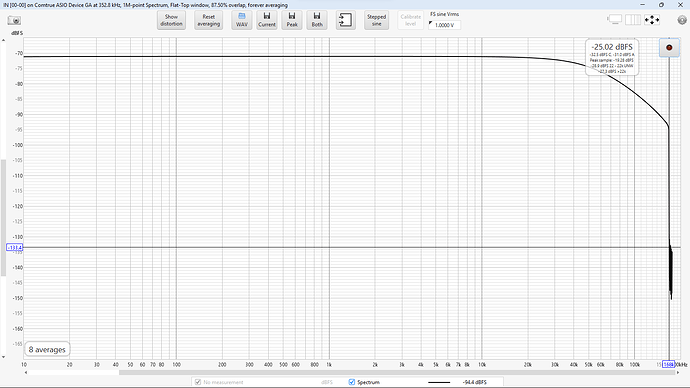

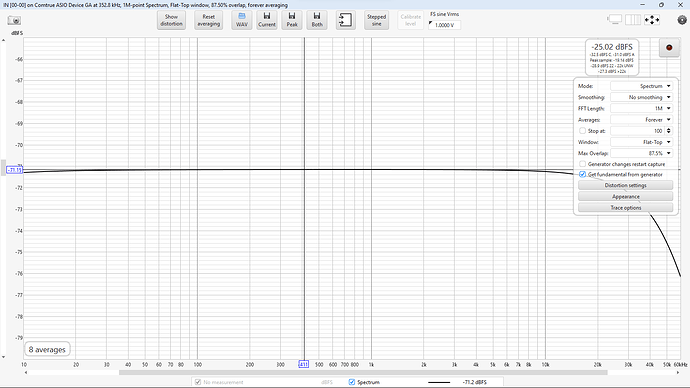

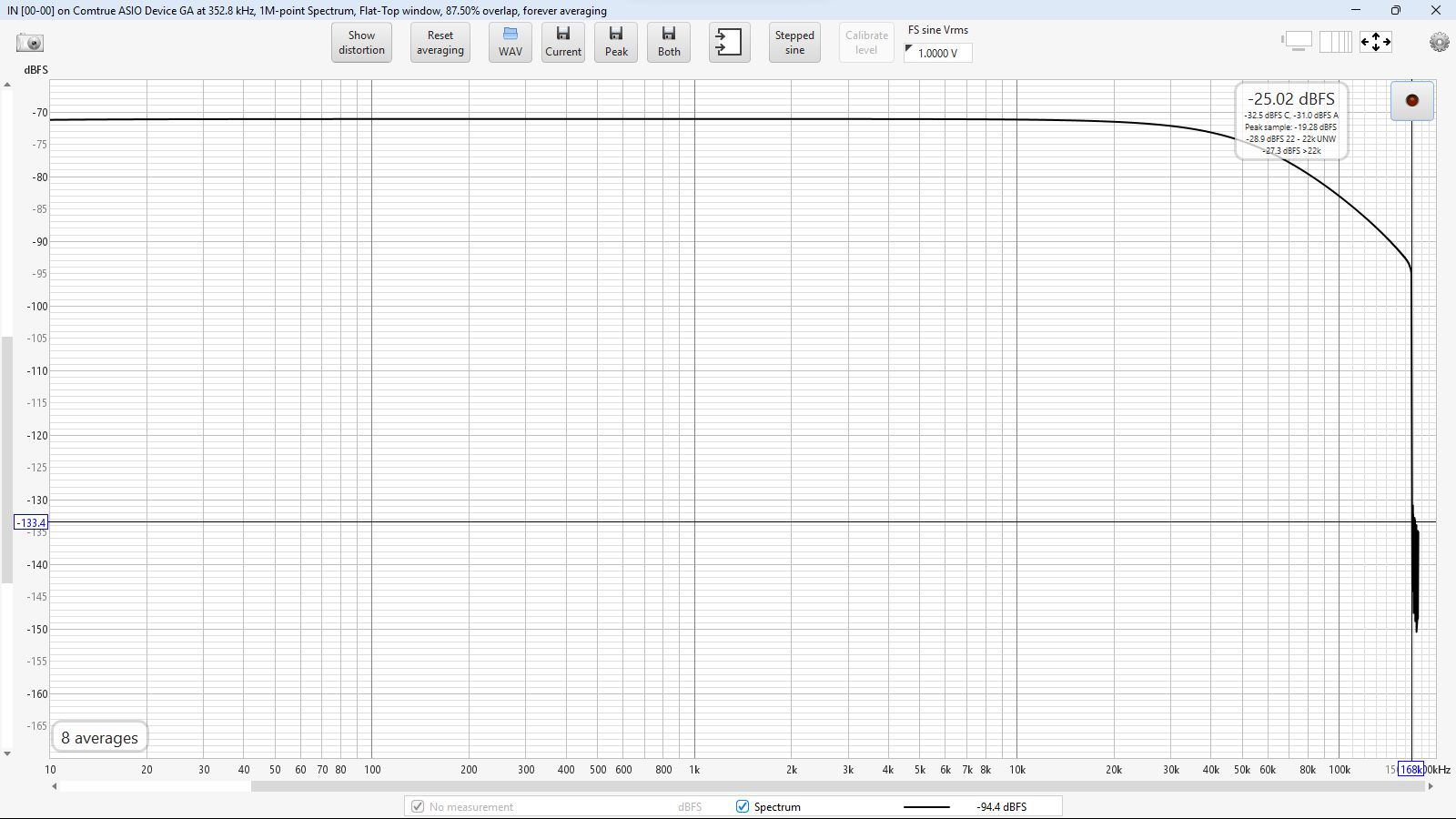

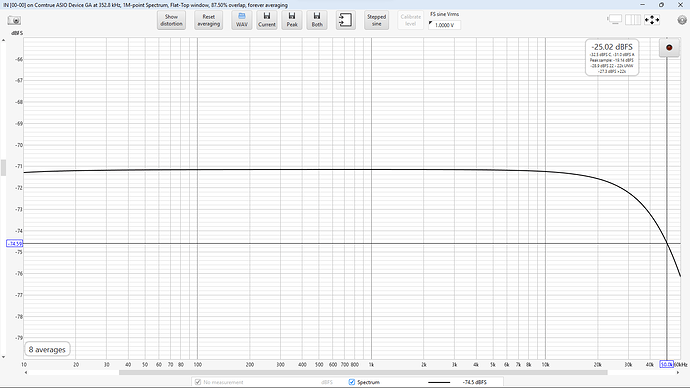

So for completeness for my friend, as a good QA/QC check I checked frequency response for both channels.

I use PCM353kHz periodic white noise test signal → HQPlayer → DSD256 with sinc-S filter

Captured at PCM353kHz by ADC.

Both channels perform the same, which is nice.

Even for the anti measurement crowd, its nice to have the tools to do your own QA/QC check, checking for faults for your particular unit.

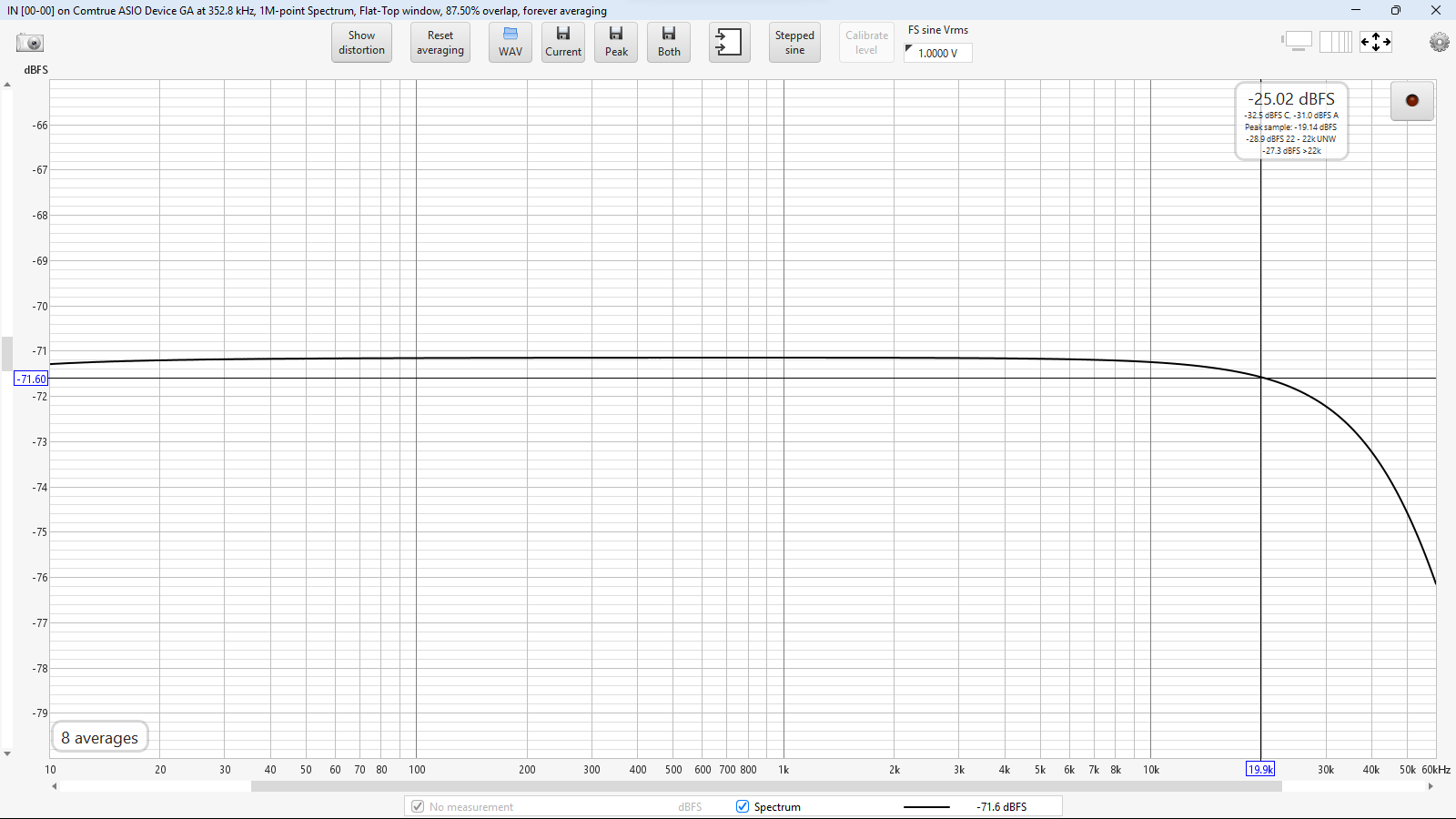

0.5dB down at 20kHz (no big deal)

1dB down at 30kHz (no big deal)

2dB down at 40kHz

3dB down at 50kHz

2 Likes

Could you go into this in a little more detail? Which tools do you mean here? And how to do this?

Basically the gear to do all the measurements I’ve shown - is good to do a QA/QC check.

This is exactly how I found the bug at DSD512 with SMSL D-6 which SMSL fixed.

The “how to do this” has taken me a couple years to reach the point where I can be confident to publish measurements knowing they are reasonably accurate. Like if @GoldenSound decides to measure Cyan2, I’m confident they’ll be like mine (if he actually measures properly at DSD256 of course, not in NOS mode). The links below are a great resource as well as ASR forum to ask for help. It would take me hours to write.

But ideally you need a measurement laptop running Room EQ Wizard and Multitone Analyzer and this:

ideally paired with this:

2 Likes

Yes, since the DAC doesn’t need to switch clocks and if you use the Idle Time option, it won’t get started/stopped nearly as frequently.

There shouldn’t be any notable difference. Or if there is, (2) should be better.

Or people in EU ask Jos of Magna Hifi. :slight_smile:

On in Asia Wildism, or in Japan iCat Inc.

Due to the NOS focus, Holo has such 50 kHz fc (-3 dB point). If you like wider bandwidth, T+A gives you option to choose between two analog filters. A 60 kHz one and a “wide” one. Of course the price is pretty different, which is also affected by the Made in Germany aspect.

1 Like

Nice to know my measurement was accurate then !

i thought all the dealers get it from Kitsune

So only Kitsune has direct contact with Jeff?

So if wanting to request network input, go straight to the closest contact to the designer

I might be wrong though

1 Like

AFAIK no, but this is not my piece of cake… (so what do I know about anything)

No, for example I have too…

I would say go to the source where you are buying your devices from…

1 Like

ok, so I stay with this choice =>

I set “Idle Time” to 60

1 Like

I believe you recommend putting the DSD filter at 50 Hz for DSD 256.

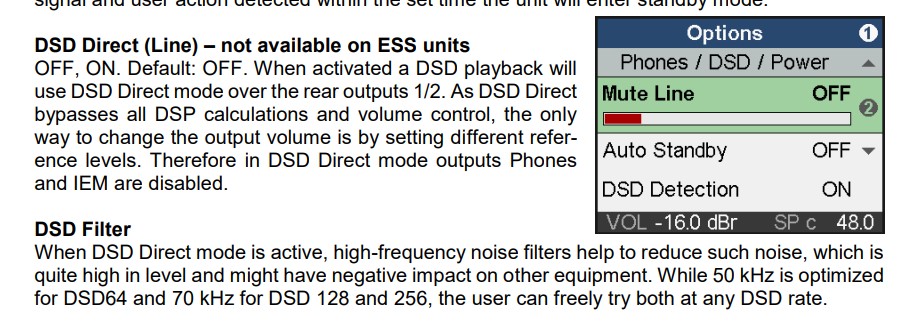

The RME ADI2 documentation indicates instead to use 150 Hz for DSD 256 (and 128), and 50 Hz for DSD 64.
Ultimately what is preferable?

50 kHz setting. Which is sample rate dependent. So it is 50 kHz at DSD64. 100 kHz at DSD128 and 200 kHz at DSD256.

If you have “B” model, these frequencies are different, but the ADI-2 interface didn’t get updated for such.
