How might I direct Roon Server logs away from the root partition? My root partition filled up.
Are you certain these logs are the culprit? I’d be surprised if they occupy vast amounts of space. Use df with sort to examine how space is used.
Whilst you can mount another partition or logical volume to any folder, you first need to describe how Roon was installed. Is it on a dedicated SSD, the root filesystem, or a container?
1 Like
Hi mjw,
The Synology support team said Roon was the culprit. I ran the Roon on NAS install from Chris Rieke’s page. The Roon software and the Roon database are on a USB SSD; the music files are on spinning disks:
Is Roon running on the same disk as your root partition?
If so, then to check the size of the Roon installation, including logs, type this from the command prompt.
du -cha --max-depth=2 /beetlessd/RoonOnNAS |grep -E "M|G"
If Roon runs as root, and you see a cannot read or cannot access message, prepend sudo to the command. I’m assuming, from the screenshot, that beetlessd is mounted at / (root.)
Also, please execute this, too.
sudo du --exclude=/proc --exclude=/run -cha --max-depth=1 / |grep -E "M|G"

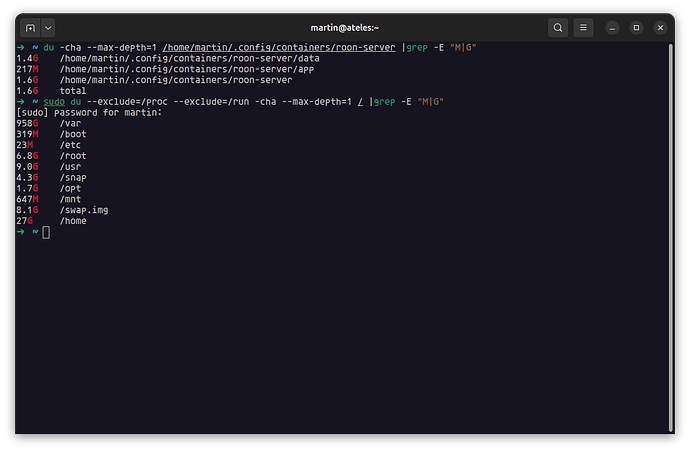

Please post the results, which will look similar to this.
sudo du --exclude=/proc --exclude=/run -cha --max-depth=1 / |grep -E “M|G”
nu@DS218:/$ du -cha --max-depth=2 ./volumeUSB1/usbshare/RoonOnNAS/RoonServer |grep -E “M|G”
6.1M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Logs/RoonServer_log.02.txt
2.1M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Logs/RoonServer_log.03.txt
1.6M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Logs/RoonServer_log.txt
12M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Logs
4.0K ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Cache/RoonMobileTranscodes
3.2M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Cache/devicedb-prod.zip
160M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Cache/images
163M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Cache
6.8M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Temp/809d8d83f8f94d0aa988f19a684b7ec1
6.8M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Temp
448M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Database/Core
448M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer/Database
630M ./volumeUSB1/usbshare/RoonOnNAS/RoonServer
630M total
Can you please run the commands as described, and use the full path from / (root). What you posted is neither the entire Roon installation nor your / (root) filesystem.
What you posted is incomplete, and only shows 630 MB of storage in use – this too small for Roon, and certainly isn’t the cause of the disk running out of space.
mw@DS218:~$ sudo du --exclude=/proc --exclude=/run -cha --max-depth=1 / |grep -E “M|G”
Password:
659M /volumeUSB1
1.5G /usr
5.9M /var.defaults
2.0M /.log.junior
4.3M /etc
2.4M /etc.defaults
172M /var
48M /.syno
Retrying the first command
mw@DS218**:~$ sudo du -cha --max-depth=2 /beetlessd/RoonOnNAS |grep -
du: cannot access ‘/beetlessd/RoonOnNAS’: No such file or directory
If I change the path a bit
mw@DS218:~$ sudo du -cha --max-depth=2 / |grep -E "M|G"
Password:
1.6M /run/samba
4.0K /run/checkNewDSM.unavailable
1.6M /run/synocrond
8.0M /run/log
3.1M /run/udev
16M /run
674M /volumeUSB1/usbshare
674M /volumeUSB1
129M /usr/share
105M /usr/bin
26M /usr/sbin
225M /usr/local
734M /usr/syno
13M /usr/lib32
274M /usr/lib
1.5G /usr
957M /volume1/@database
670G /volume1/homes
18M /volume1/@eaDir
1.1G /volume1/@appstore
494G /volume1/music
109G /volume1/photo
165G /volume1/@synologydrive
17M /volume1/@cloudsync
3.8M /volume1/@SynoFinder-log
2.4M /volume1/@appdata
62G /volume1/@img_bkp_cache
2.9G /volume1/backup
5.8M /var.defaults/lib
5.9M /var.defaults
4.0K /tmp/buzzerCurrentBitMap
0 /tmp/DSMTaskMgr
2.0M /.log.junior
8.0K /etc/ImageMagick-6
4.3M /etc
8.0K /etc.defaults/ImageMagick-6
2.4M /etc.defaults
9.2M /var/cache
7.1M /var/packages
75M /var/db
29M /var/lib
63M /var/log
182M /var
48M /.syno/patch
48M /.syno
du: cannot access '/proc/8322/task/8322/fd/3': No such file or directory
du: cannot access '/proc/8322/task/8322/fdinfo/3': No such file or directory
du: cannot access '/proc/8322/fd/4': No such file or directory
du: cannot access '/proc/8322/fdinfo/4': No such file or directory
Please let me know what you think.
That’s because the path is incorrect. As an example, I based it on this image since I do not know the full path.
However, you’ve already shown ./volumeUSB1/usbshare/RoonOnNAS, so you need to locate the parent folder(s). It could be /mnt or /media. The webGUI should say where the volume is mounted.
However, if you run this, I can probably tell.
sudo du --exclude=/proc --exclude=/run -cha --max-depth=3 / |grep -E "M|G"
``Here is the full screenshot, but I do not see /mnt or /media:
664M /volumeUSB1/usbshare/RoonOnNAS
11M /volumeUSB1/usbshare/@tmp
674M /volumeUSB1/usbshare
674M /volumeUSB1
25M /usr/share/pgsql
1.4M /usr/share/postgresql
6.5M /usr/share/apparmor.d
42M /usr/share/geoip
7.2M /usr/share/diskmlmodel
2.2M /usr/share/snmp
1.8M /usr/share/zoneinfo
12M /usr/share/poppler
28M /usr/share/icu
1.4M /usr/share/vim
129M /usr/share
1.1M /usr/bin/fio
1.3M /usr/bin/sqlite3
33M /usr/bin/synonode
8.4M /usr/bin/php
1.2M /usr/bin/bash
2.2M /usr/bin/slapcat32
1.4M /usr/bin/systemd-analyze
1.5M /usr/bin/lftp
7.4M /usr/bin/postgres
2.1M /usr/bin/redis-server
1.2M /usr/bin/nginx
3.0M /usr/bin/vim
105M /usr/bin
2.7M /usr/sbin/dhclient
1.4M /usr/sbin/lvm
2.5M /usr/sbin/slapd
1.2M /usr/sbin/tcpdump
26M /usr/sbin
8.2M /usr/local/share
1.1M /usr/local/plugin
214M /usr/local/packages
225M /usr/local
170M /usr/syno/synoman
4.9M /usr/syno/share
14M /usr/syno/bin
1.2M /usr/syno/selfcheck
15M /usr/syno/locale
14M /usr/syno/sbin
2.1M /usr/syno/ipsec
13M /usr/syno/etc
2.1M /usr/syno/plugin
2.3M /usr/syno/etc.defaults
497M /usr/syno/synoinstall
734M /usr/syno
1.4M /usr/lib32/libdb-5.3.so
1.2M /usr/lib32/libstdc++.so.6.0.25
1.8M /usr/lib32/libc-2.26.so
6.3M /usr/lib32/gconv
13M /usr/lib32
2.4M /usr/lib/lib7z.so
1.7M /usr/lib/libwebapi-DSM5.so
1.2M /usr/lib/libxapian.so.15.5.2
2.6M /usr/lib/libprotobuf.so.17.0.0
24M /usr/lib/modules
2.0M /usr/lib/libgio-2.0.so.0.6400.4
2.8M /usr/lib/libsynopkg.so.1
3.1M /usr/lib/libicui18n.so.64.2
0 /usr/lib/libGeoIP.so
1.7M /usr/lib/libzxcvbn.so.0.0.0
1.7M /usr/lib/libsynoinstallcpp.so
1.9M /usr/lib/libicuuc.so.64.2
1.2M /usr/lib/libexempi.so.3.2.4
3.7M /usr/lib/libMagickCore-6.Q8.so.6.0.0
1.2M /usr/lib/libfreeblpriv3.so
2.8M /usr/lib/libxgboost.so
1.5M /usr/lib/libnss3.so
3.0M /usr/lib/libpoppler.so.88.0.0
1.1M /usr/lib/libhwcontrol.so.1
1.5M /usr/lib/libdb-5.3.so
2.2M /usr/lib/libdns-9.16.23.so
12M /usr/lib/libdocconv.so.7
1.3M /usr/lib/libstdc++.so.6.0.25
1012K /usr/lib/libMagickWand-6.Q8.so.6.0.0
1.4M /usr/lib/libgrpc_unsecure.so
3.1M /usr/lib/libexiv2.so.0.27.3
0 /usr/lib/libMagickCore-6.Q8.so.6
1.3M /usr/lib/libqpdf.so.21
0 /usr/lib/libGeoIP.so.1
1.3M /usr/lib/libgcrypt.so.20.3.4
1.4M /usr/lib/libxml2.so.2.9.10
1.2M /usr/lib/libsynoconf-backup.so.7
2.9M /usr/lib/libcrypto.so.1.1
2.6M /usr/lib/libmpfr.so.6.0.1
1.7M /usr/lib/libc-2.26.so
1.8M /usr/lib/libopenvswitch.so.1.0.0
0 /usr/lib/libMagickWand-6.Q8.so.6
4.5M /usr/lib/systemd
1.3M /usr/lib/libm-2.26.so
1.9M /usr/lib/syslog-ng
1.3M /usr/lib/synoce
2.1M /usr/lib/libgnutls.so.30.30.0
12M /usr/lib/libavcodec.so.58.35.100
2.1M /usr/lib/libtag.so.1.18.0
1.1M /usr/lib/libraw.so.20.0.0
3.0M /usr/lib/libsynostoragemgmt.so
1.2M /usr/lib/libglib-2.0.so.0.6400.4
5.4M /usr/lib/php
1.8M /usr/lib/libgrpc.so
2.0M /usr/lib/libp7zip.so
3.0M /usr/lib/libavfilter.so.7.40.101
3.0M /usr/lib/libpoppler-0.x.so.88.0.0
240K /usr/lib/libGeoIP.so.1.6.12
2.0M /usr/lib/libavformat.so.58.20.100
1.4M /usr/lib/cups
3.2M /usr/lib/libpython3.8.so.1.0
42M /usr/lib/python3.8
1.6M /usr/lib/libsynostoragecore.so.7
4.1M /usr/lib/sssd
6.3M /usr/lib/gconv
0 /usr/lib/libMagickCore-6.Q8.so
0 /usr/lib/libMagickWand-6.Q8.so
274M /usr/lib
1.5G /usr
9.8M /volume1/@database/synolog
304M /volume1/@database/pgsql.old.1660417473
644M /volume1/@database/pgsql
957M /volume1/@database
827M /volume1/homes/@eaDir
448G /volume1/homes/mikeweadley
4.0K /volume1/homes/Mike Weadley Uplight
223G /volume1/homes/kweadley
670G /volume1/homes
8.1M /volume1/@eaDir/music
9.6M /volume1/@eaDir/photo
18M /volume1/@eaDir
86M /volume1/@appstore/CodecPack
94M /volume1/@appstore/HyperBackup
1.7M /volume1/@appstore/exFAT-Free
217M /volume1/@appstore/RoonServer
67M /volume1/@appstore/Node.js_v12
66M /volume1/@appstore/Node.js_v18
15M /volume1/@appstore/SynologyApplicationService
30M /volume1/@appstore/UniversalViewer
80M /volume1/@appstore/SynologyDrive
33M /volume1/@appstore/CloudSync
403M /volume1/@appstore/SynologyPhotos
1.1G /volume1/@appstore
49M /volume1/music/@eaDir
55G /volume1/music/HiResMusic
439G /volume1/music/StdResMusic
4.0K /volume1/music/.Media Preferences.plist
316K /volume1/music/Automatically Add to Music.localized
494G /volume1/music
106M /volume1/photo/@eaDir
6.2G /volume1/photo/Archive
27G /volume1/photo/Inbox
76G /volume1/photo/Needs Processing
166M /volume1/photo/Slides
109G /volume1/photo
164G /volume1/@synologydrive/@sync
485M /volume1/@synologydrive/log
165G /volume1/@synologydrive
15M /volume1/@cloudsync/db
2.4M /volume1/@cloudsync/log
17M /volume1/@cloudsync
2.1M /volume1/@SynoFinder-log/synoelasticd.log
3.8M /volume1/@SynoFinder-log
0 /volume1/@appdata/MediaServer
2.2M /volume1/@appdata/AudioStation
0 /volume1/@appdata/SynologyMoments
2.4M /volume1/@appdata
0 /volume1/@apphome/MediaServer
0 /volume1/@apphome/SynologyMoments
4.0K /volume1/@appconf/MediaServer
4.0K /volume1/@appconf/SynologyMoments
0 /volume1/@userpreference/Mike Weadley Uplight
40K /volume1/@config_backup/id@45a76495-5f42-41f2-a029-86daf4dabe21@ho@STARKDS218@sn@18A0PCN473316@mo@DS218+@vr@7.1.1-42962@os@DSM@dv@5
37M /volume1/@img_bkp_cache/ClientCache_cloud_image_synocloud_swift.0oRqKF
62G /volume1/@img_bkp_cache/synocloud_swift__e3038a6450ad4a47a9582c700aec5305.FPlI55
62G /volume1/@img_bkp_cache
2.4G /volume1/backup/roon
479M /volume1/backup/RoonServer.log
2.9G /volume1/backup
3.4M /var.defaults/lib/portforward
2.0M /var.defaults/lib/disk-compatibility
5.8M /var.defaults/lib
5.9M /var.defaults
4.0K /tmp/buzzerCurrentBitMap
4.0K /tmp/ssdp/desc-DSM-eth0.xml
0 /tmp/apple/AT_LOG
0 /tmp/DSMTaskMgr/@administrators
0 /tmp/DSMTaskMgr
2.0M /.log.junior
4.0K /etc/ImageMagick-6/policy.xml
8.0K /etc/ImageMagick-6
4.3M /etc
4.0K /etc.defaults/ImageMagick-6/policy.xml
8.0K /etc.defaults/ImageMagick-6
2.4M /etc.defaults
0 /sys/devices/LNXSYSTM:00
0 /sys/module/ipt_MASQUERADE
0 /sys/module/xt_LOG
8.0M /var/cache/texts
9.2M /var/cache
224K /var/packages/SMBService
7.1M /var/packages
1.6M /var/db/securityscan-database
73M /var/db/geoip-database
75M /var/db
1.8M /var/lib/samba
3.7M /var/lib/portforward
21M /var/lib/disk-compatibility
29M /var/lib
1.8M /var/log/samba
11M /var/log/syno_sys_status.log
3.8M /var/log/synolog
1.6M /var/log/systemd
1.2M /var/log/synomibclient
13M /var/log/disk-latency
2.6M /var/log/messages
3.9M /var/log/kern.log
1.1M /var/log/nginx
63M /var/log
182M /var
13M /.syno/patch/updater
8.8M /.syno/patch/bios.ROM
1.5M /.syno/patch/smartctl
6.5M /.syno/patch/DiskCompatibilityDB.tar
4.0K /.syno/patch/GRUB_VER
8.0M /.syno/patch/synofwupgrade
1.0M /.syno/patch/H2OFFT-Lx64
3.4M /.syno/patch/zImage
5.2M /.syno/patch/rd.gz
48M /.syno/patch
48M /.syno
That’s all Roon is using. This seems a little low, but this all depends on the size of your database. The app used ~200 MB, and the logs ~15 MB. My database and data are 1.3 GB.
So, it would seem that the issue isn’t Roon.
If you append | sort -n to the last command it will show you the largest folders first.
I wonder if there is something wrong with my installation. This is the rough size in terms of tracks…does that seem about right for the amount of storage used?
There is definitely something odd and I keep having to kill Roon Remote instances. And something was preventing Synology package updates.
I appreciate the help and insights, thank you
Your library is comparable in size to mine, so it looks like something is wrong–you should have 1-2 GB for the DB. Even so, that isn’t much, and it’s not your / (root) drive anyway.
I don’t know how QNAP organizes the filesystem, but /volume1 is consuming the most space, and you have some pretty large folders.
670G /volume1/homes
494G /volume1/music
448G /volume1/homes/mikeweadley
439G /volume1/music/StdResMusic
223G /volume1/homes/kweadley
165G /volume1/@synologydrive
164G /volume1/@synologydrive/@sync
109G /volume1/photo
62G /volume1/@img_bkp_cache/synocloud_swift__e3038a6450ad4a47a9582c700aec5305.FPlI55
62G /volume1/@img_bkp_cache
The last two look suspicious, and may account for a duplicate 62 GB.
