Hi @jussi_laako , have you seen this recent ESS chat?

ESS DAC Technology | Pints with Ayre - YouTube

This is probably the most I’ve seen ESS talk publicly about how they do things.

Some cool things:

• Multiple 1-bit DACs

• He reveals errors are pushed to 4 or 6 MHz - I assume this means their modulator runs at equivalent of DSD128 sample rate?

• He mentions reducing correlated noise is important

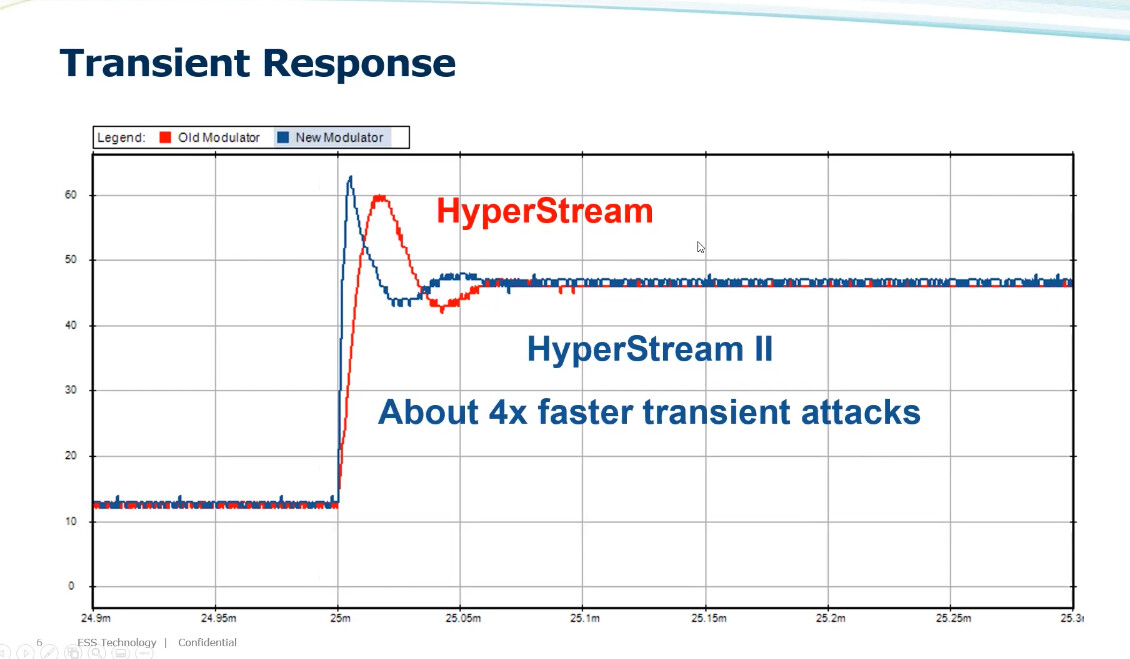

• His transients plot is really interesting - how does EC modulator step response / transient plot vs non-EC modulator plot look? I assume HQPlayer EC modulators have an improvement in transients ! Maybe the key improvement?

• Charles Hansen was the first to ask ESS about by-passing ASRC

[jussi_laako (Jussi Laako (Signalyst))]

@dabassgoesboomboom

have you seen this recent ESS chat

Not that one, but I’ve seen similar things before.

@dabassgoesboomboom

Multiple 1-bit DACs

They use 64 while my DSC1 design uses 32. But otherwise similar.

@dabassgoesboomboom

He mentions reducing correlated noise is important

I think that is what I’ve been also saying. Major problem of PCM.

@dabassgoesboomboom

His transients plot is really interesting - how does EC modulator step response / transient plot vs non-EC modulator plot look? I assume HQPlayer EC modulators have an improvement in transients ! Maybe the key improvement?

Here’s some with my older non-EC modulator version and DSC1 DAC.

7 kHz square wave at DSD256:

You can also see it is nicely stable:

@dabassgoesboomboom

Charles Hansen was the first to ask ESS about by-passing ASRC

But Mytek Stereo192-DSD DAC did it already in 2011.
