Innomaker HiFi DAC Pro

Will_Butler · September 10, 2024, 5:24pm

I’m new to RoPieee so this might be some number of problems I’ve created.

So I’m up on RoPieee, I see the webpage, I’ve gotten wifi connected and working. I have a Innomaker HiFi DAC Pro but I don’t see the audio on the network. I initially chose from the audio tab the Innomaker Hifi DAC assuming it would for the pro too. I saw another topic saying the Roon Bridge won’t work if the DAC isn’t working so I think that is where I’m stopped. I tried the Hifiberry Dac+ and Hifiberry Dac2 Pro too with no luck.

@spockfish sorry to bother you but what hardware profile would I use for this? I donated at least so hopefully that makes this less annoying. Appreciate you.

Nathan_Wilkes · September 10, 2024, 5:39pm

Hello @Will_Butler . I suggest that you use the “Send Feedback” feature so the logs are accessible to Harry in case he has time to take a look. The DAC should be powered on and attached before you do this.

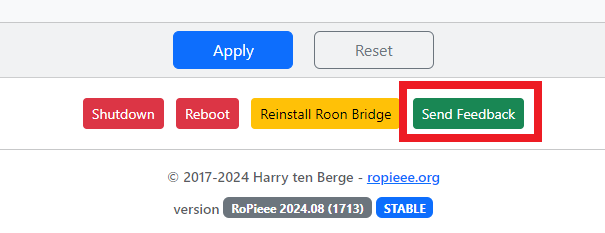

On the Advanced tab:
Screenshot 2024-09-10 103735

Post the identifier in this thread.

Will_Butler · September 10, 2024, 5:58pm

Thank you.

Identifier is:

0be4efb4e553acb4

spockfish · September 10, 2024, 8:19pm

Well,

This feedback showed you’ve configured a Hifiberry DAC Plus, but the device is not available/recognized.

First thing that comes to mind (as you’ve tried 3 HATs): is the connection good?

Secondly, the Innomaker DAC Pro requires the ‘Allo Kantana’ driver. So I would suggest you go back to the Innomaker, configure it as the ‘Allo Kantana’ HAT, and try again.

Thanks

Will_Butler · September 10, 2024, 9:53pm

Sorry for the confusion. I tried the different hat drivers, not different hats. Trying the driver you suggested and it’s rebooting now!

Will_Butler · September 10, 2024, 9:56pm

Appreciate you @spockfish!

spockfish · September 10, 2024, 9:58pm

I’ll add it to the list, so with the next release it will be available under it’s own name.

spockfish · September 11, 2024, 6:34pm

Oh, one more thing: could you send me feedback? So I can get all information needed to add it to the list?

Thanks

Will_Butler · September 15, 2024, 4:30pm

@spockfish sorry for the delay, just saw this

ab0e4effab63166f

Feedback may be confusing bc I also have a Cayin RU7 on there, but the hat is also connected.

ntrusbak · February 23, 2025, 5:37pm

hi, just wanted to share that I have had no issues using this DAC with RoPieee. I selected “Innomaker HiFi DAC Pro” in the Audio section, and it work like a charm

Btw, am running it on an RPI 3B+ power by a separate 5V USB charger (jumper removed).

Cheers

ntrusbak · February 23, 2025, 5:40pm

One more thing: Using an amplifier (not headphones). I am using the balanced outputs with standard 3.5minijack->RCA cables, one for each channel. Only the Left/white RCA connectors are connected to the amp (Right/red are hanging loose).
