Having a nuc (10i7) I wanted to try to install ROCK in ESXi 7 (VM mode) but I found some difficulties, because the downloadable iso is not bootable by ESXi; after several readings I found the right way to do it and I would like to share with you the procedure also for those who like me are a newbie with ESXi.

I’ll leave you with lots of pictures because as they say: a picture is worth a thousand words.

First, after downloading the iso from the official Roonlabs website, we need to extract it and get the .img and convert it with a software StarWind V2V Converter.:

1. StarWind
1. StarWind565×511 10.8 KB
2. StarWind
2. StarWind565×511 5.24 KB
3. StarWind
3. StarWind565×511 9.94 KB
4. StarWind
4. StarWind565×511 9.44 KB
5. StarWind
5. StarWind565×511 16.4 KB
6. StarWind
6. StarWind565×511 5.79 KB
7. StarWind
7. StarWind565×511 6.47 KB

Now let’s prepare the virtual machine with VMware Workstation Pro 16

1.VMware
1.VMware958×597 34.6 KB
2.VMware 3.VMware 4.VMware 5.VMware 6.VMware 7.VMware 8.VMware 9.VMware 10.VMware 11.VMware 12.VMware 13.VMware 14.VMware 15.VMware
16.VMware
16.VMware961×596 29.5 KB

remove the printer and DVD, which serves no purpose

17.VMware
17.VMware750×733 14.3 KB

19.VMware
19.VMware749×735 15.3 KB

WARNING DO NOT REMOVE USB!

18.VMware do not delete usb
18.VMware do not delete usb748×733 13 KB

Switch on the newly created virtual machine and check that everything is working fine

20.VMware
20.VMware925×566 30.1 KB
21.VMware
21.VMware924×514 16.1 KB

Now that everything is working properly, we turn off the machine and create a disk where we can install ROCK

22.VMware
22.VMware924×514 18.9 KB
23.VMware
23.VMware924×514 21 KB
24.VMware
24.VMware924×514 26.3 KB
25.VMware
25.VMware750×734 17 KB
26.VMware 27.VMware 28.VMware 29.VMware 30.VMware
31.VMware
31.VMware750×734 17.8 KB

It is now time to connect a second keyboard to our computer and make some changes to the VMW file to enable device passthrough.

32.VMware
32.VMware999×557 34.1 KB

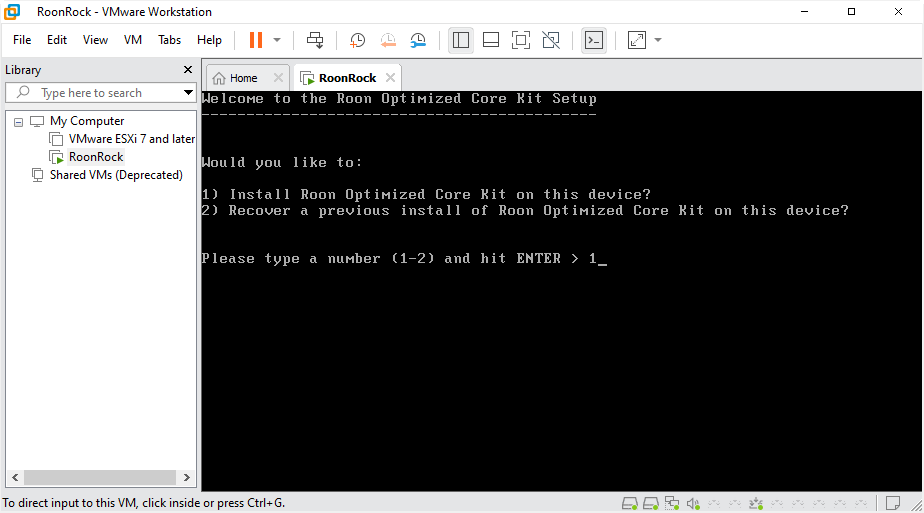

Now we can finally install ROCK!

33.VMware
33.VMware924×514 27.7 KB
34.VMware
34.VMware924×514 14.1 KB
35.VMware
35.VMware924×513 23.2 KB
36.VMware
36.VMware924×513 20 KB
37.VMware
37.VMware924×513 21.6 KB
38.VMware
38.VMware924×513 14.5 KB
39.VMware
39.VMware924×513 13.4 KB
40.VMware
40.VMware924×513 16.7 KB
41.VMware
41.VMware924×513 13.8 KB

Now we turn off the machine and disconnect the “ROON installer” host disk and export the entire virtual machine in OVA format.

42.VMware
42.VMware924×513 16.8 KB
43.VMware
43.VMware924×513 27.8 KB
44.VMware
44.VMware750×734 18.6 KB
45.VMware
45.VMware750×734 17.4 KB
46.VMware
46.VMware924×513 27.5 KB
47.VMware
47.VMware924×513 15 KB
48.VMware
48.VMware924×513 17.5 KB
49.VMware
49.VMware924×513 26.6 KB
50.VMware
50.VMware712×467 16.1 KB
51.VMware
51.VMware924×513 24.9 KB
52.VMware

Now simply import the new *.ova machine onto your ESXi 7 and you’re done.

I hope I have been clear and helpful for those of you who are new to ESXi.

10 Likes
2

This is good stuff. I know the time you spent on capturing the images. Well done.

How’s it performing? In my VM I found it was a little happier with 8GB RAM. It will run ok at 4 but if you give it a little more it gets a bit more responsive.

3

Excellent !!!
It is the most detail installation guidelines I have ever see. Just step by step even a newbie can clone the result.

1 Like
4

Many thanks.

There are some differences when using the free workstation but I’ve managed to improvise based on this guide and successfully added ROCK to my ESXi.

1 Like
5

@fatez Steve, I applaud the time and effort you put into your post. Hats off to you sir!

1 Like
6

Thank you so much, it is a pleasure to share with the community.

1 Like
7

Thanks for this great post and the passthrough tip… I could get there on my own up to the point where I needed keyboard input during the setup and could not find any way to make it work :wink:
