Roon Core Machine
Intel NUC 11TNHi7 w/ 8GB RAM
OS v1.0, build 258
Roon Server Software v2.0, build 1277
Networking Gear & Setup Details
Calix 716GE-I optical network terminal
Zyxel C3000Z modem/router
TP-Link TL-SG105E switch
Core connected to switch via ethernet
no VPN
provider is CenturyLink
Connected Audio Devices
Living Room:
Raspberry Pi 3B w/ Allo DigiOne HAT running RoPieeeXL 2023.05.1 (0989)
connected via ethernet
Bedroom:
Pro-Ject Stream Box S2 Ultra
Pro-Ject Pre Box S2 Digital
connected via wi-fi
Description of Issue -
I’ve upgraded my old core & I’m now having trouble getting ARC to configure. Everything functioned well with the old core, but I’m now getting the follow error. I’ve tried changing the port number, but without success. I appreciate any help! Thanks so much!
{
“ipv4_connectivity”: {“status”:“NetworkError”,“status_code”:504,“error”:“error: Error: ETIMEDOUT, response code: undefined, body: undefined connected? undefined”},
“external_ip”: {“actual_external_ip”:“75.aaa.bbb.ccc”,“actual_external_ipv6”:“null”,“router_external_ip”:“null”},
“natpmp_autoconfig”: {“status”:“NotFound”},

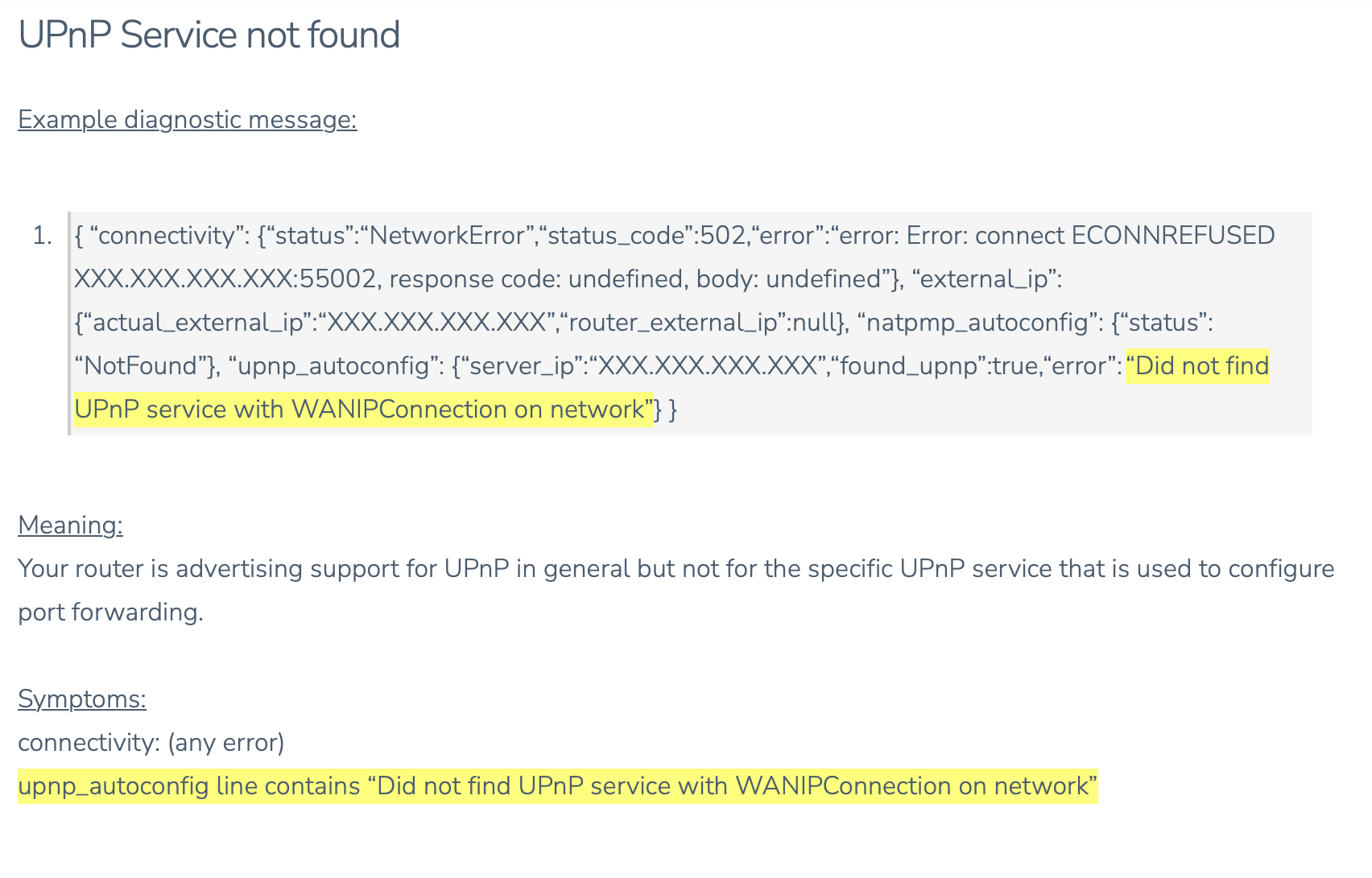

“upnp_autoconfig”: {“server_ip”:“192.168.0.1”,“found_upnp”:true,“error”:“Did not find UPnP service with WANIPConnection on network”}
}
