Roon upsampling but DSP disabled?

Roon Software Discussion
1

Hi,

I am trying to get to the bottom of some pops and clicks in my system. I have changed music, source (file to Tidal stream; fewer on tidal source), amplifier (same), interconnects (same) and power sources (same).

I want to eliminate any Roon elements or Roon core processing that may cause them pops and clicks. And I am seeing upsampling even though dsp is disabled.

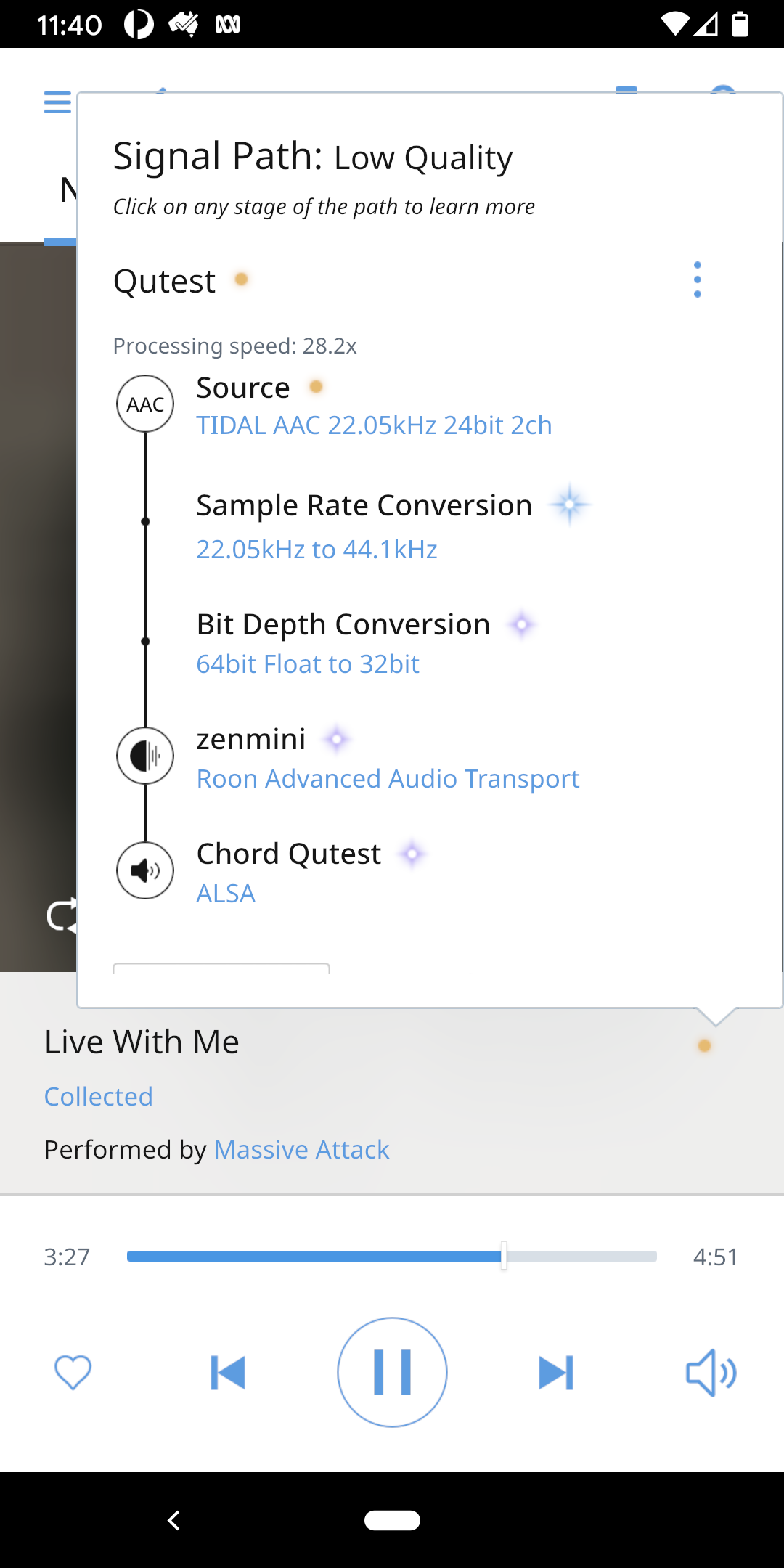

Screenshot_20201022-113955
Screenshot_20201022-1139551080×2160 160 KB
Screenshot_20201022-114016
Screenshot_20201022-1140161080×2160 232 KB

Why is Roon upsampling when DSP is off? Any tips appreciated.

The music is Massive Attack Collected (HD track at 24/96 was popping everywhere). I have a Zen Innuos Mini mkii and chord qutest connected with a curious USB)

2

May be because of your Device Setup. What does that look like?

3

Currently set to the default for a qutest.

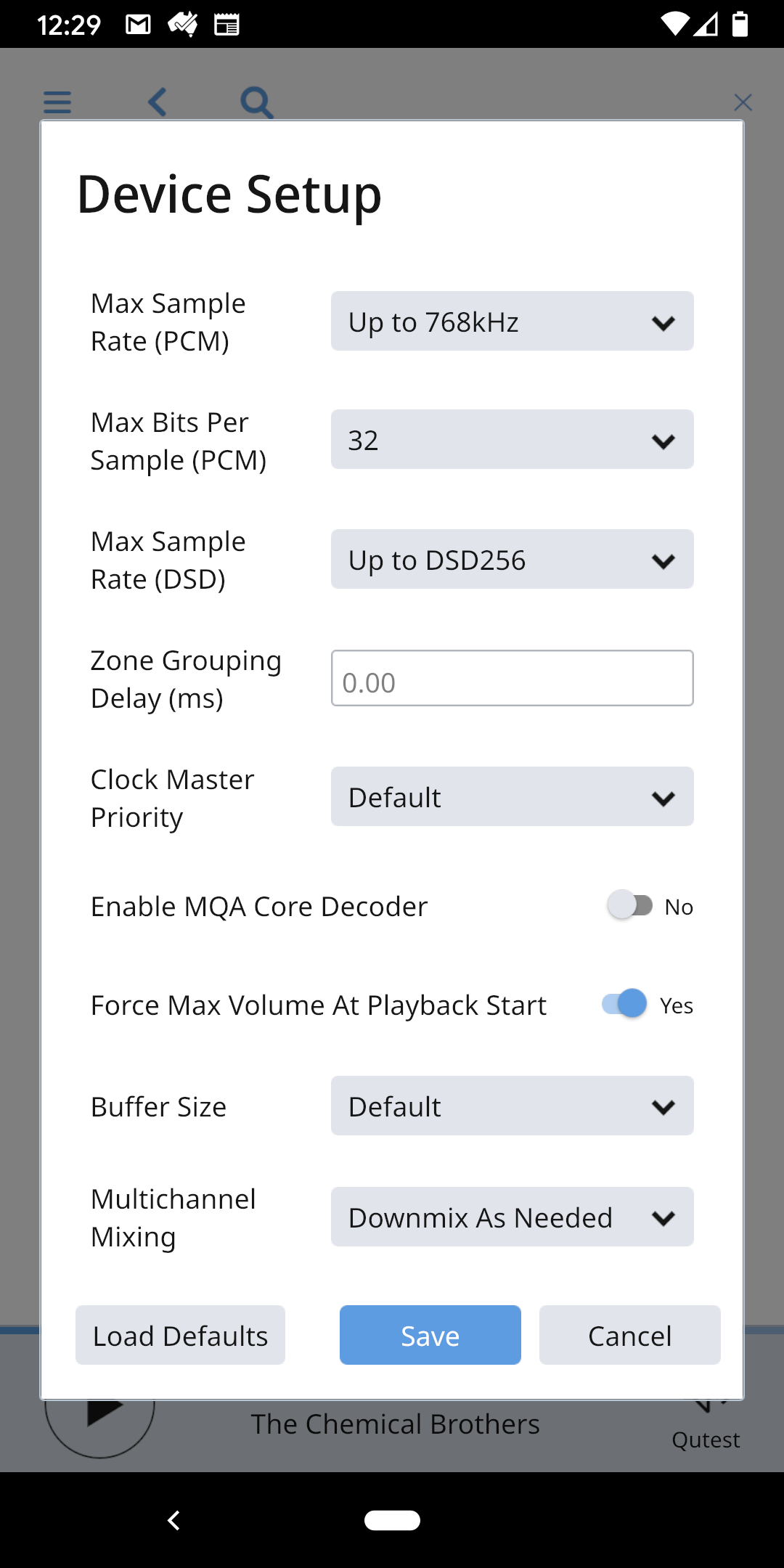

Screenshot_20201022-122906
Screenshot_20201022-1229061080×2160 226 KB
Screenshot_20201022-122929
Screenshot_20201022-1229291080×2160 185 KB

4

I’m guessing Roon is upsampling because the lowest res the Qutest can do is 44.1k.

5

Right. Makes sense.

I ignored that because I thought Tidal HiFi was all min CD quality. But it’s right there in front of me! :blush:

6

I’m guessing Roon is upsampling because the lowest res the Qutest can do is 44.1k.

Correct.

7

Hmm, I wonder why Tidal is serving you a 22.05kHz (but 24bit!) stream, which theoretically encodes only up to 11.025kHz. Roon even indicates this as “Low Quality”.

When I play the same track from Tidal, I get a 16/44.1 stream.

image1023×747 196 KB

You could file a support case with Tidal.

8

I had a look at my library and there are three options, the second AAC shows as the one from my screen shot above TIDAL AAC. If I select the ‘Tidal’ version it shows a s 16/44.

I am not sure what the AAC version is…?

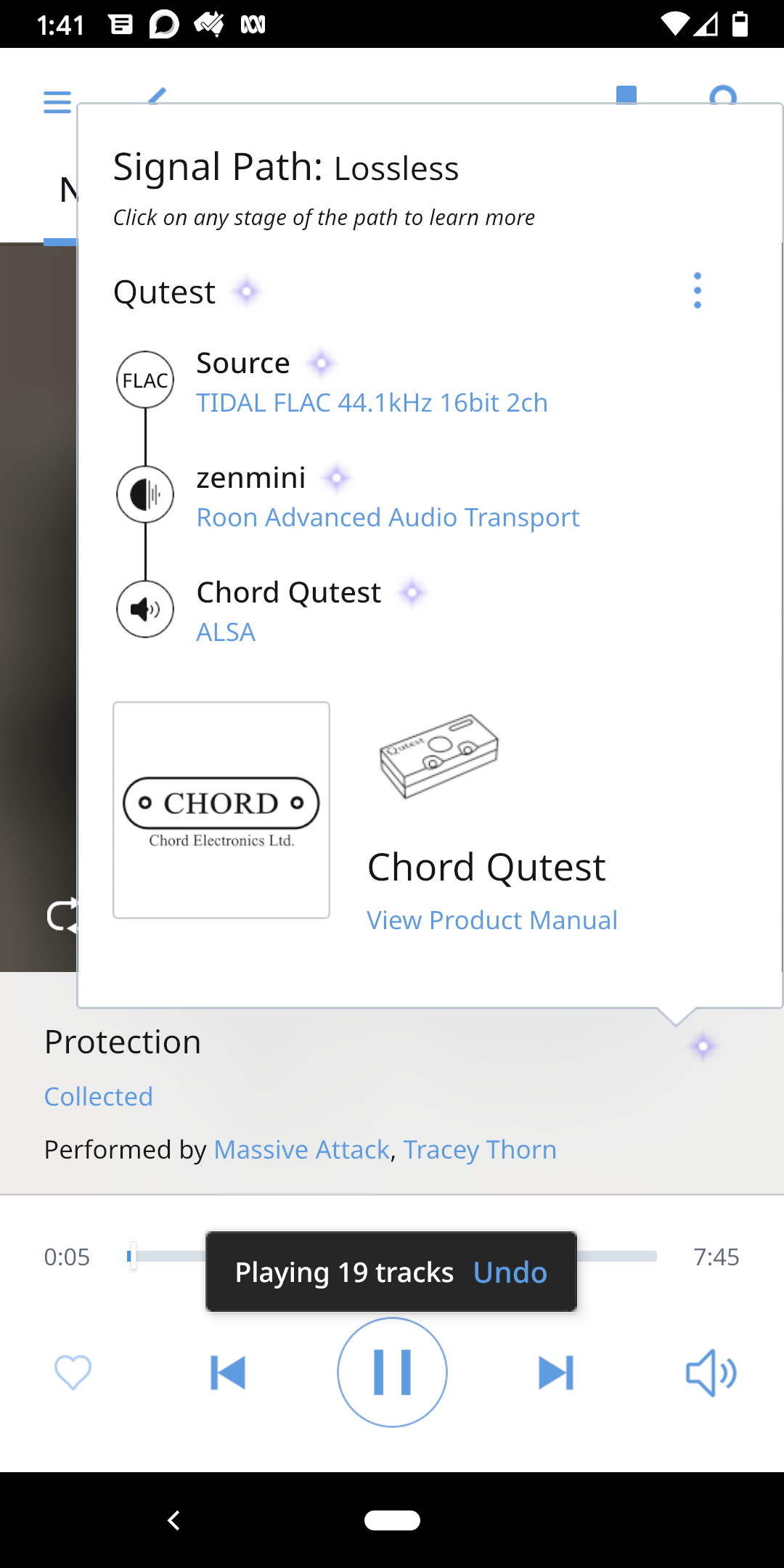

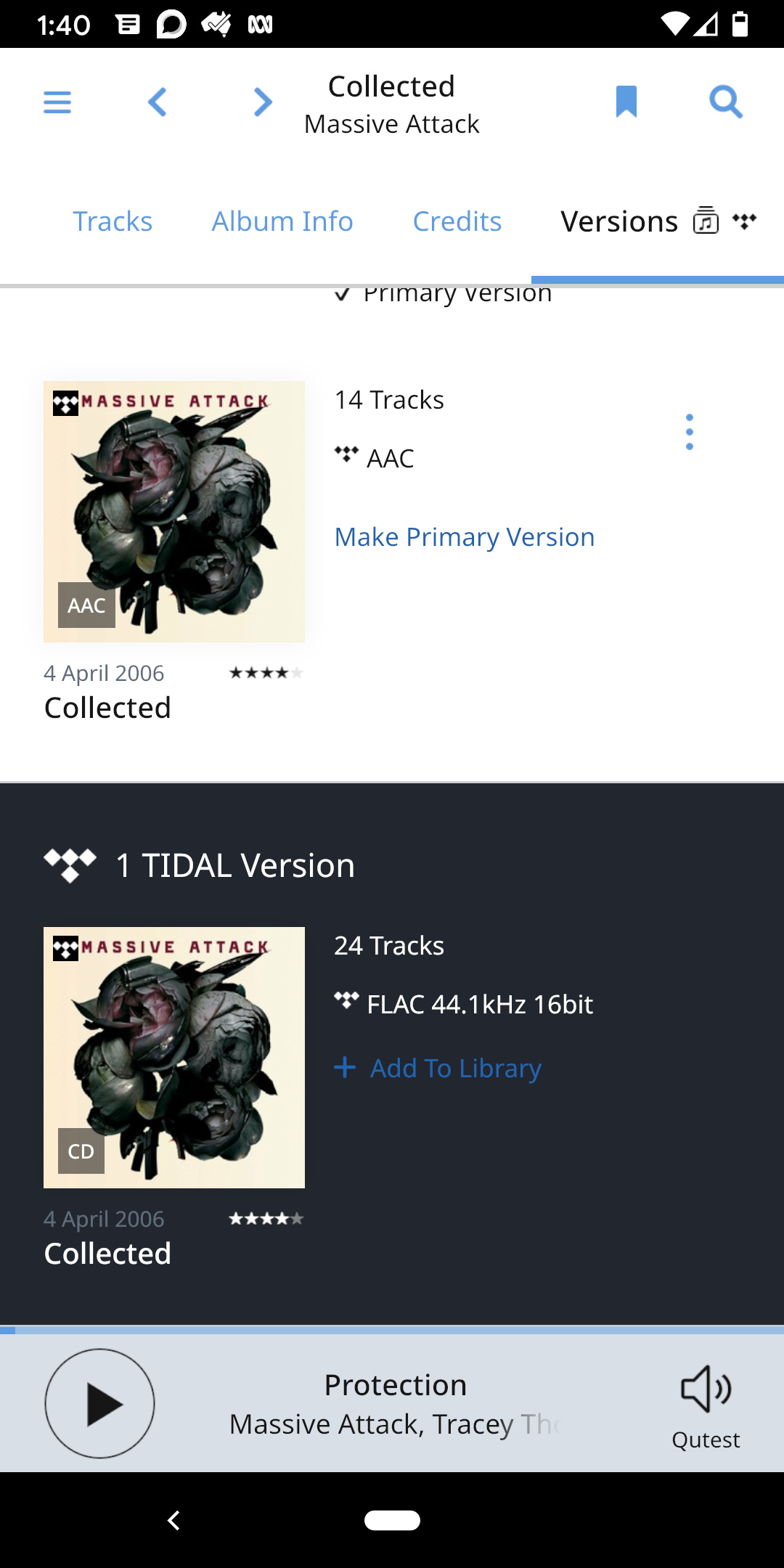

Screenshot_20201022-134023
Screenshot_20201022-1340231080×2160 301 KB
Screenshot_20201022-134033
Screenshot_20201022-1340331080×2160 283 KB
Screenshot_20201022-134107
Screenshot_20201022-1341071080×2160 254 KB

9

Hello @Benjamin_Jack,

We’re investigating why you’re getting a 22.05kHz stream from Tidal.

In regards to the Sample Rate Conversion, Roon is doing the correct thing to enable playback on your DAC.

-John

13

If you go to Roon settings then services under Tidal hit edit and see what you have streaming quality set to

14

Under Services > Tidal the quality is set to Master.

I did try Tidal via Roon this morning and it said I was logged out. I hit ‘log in’ and all seemed well. I’ll restart the server and see if that ‘removes’ the 22k version.

15

Still two versions from tidal after reboot. I noticed on the tidal app this album is available as a compilation of videos and the tracks appear individually (if you don’t want video audio) as a master version…

16

Tidal indeed has two versions:

image368×502 56.6 KB

Just delete the low quality AAC version from your Tidal library. The higher quality version has more tracks to boot.
