Am I getting full quality from Mac Mini to DAC?

Support
1

Roon Core Machine

Mac Mini (Late 2012), Catalina (10.15), Intel i7 w/8GB RAM

Networking Gear & Setup Details

N/A

Connected Audio Devices

Mac connected by USB to Cambridge Audio DACMagic 100

Number of Tracks in Library

Description of Issue

I have a Mac Mini (late 2012) connected via USB to a Cambridge Audio DACMagic 100. The DAC is capable of 192khz/24b resolution. However, the signal path display on the Roon app shows that higher resolution tracks are being downsampled to 96khz. If I look at the “advanced” section of the device setup it shows choices for Max Sample Rate of 48khz and 96khz only. Why am I not able to get the full 192khz?

2

Have you used Audio MIDI Setup (found in Utilities directory) to set the ouput of the USB to 192/24?

image1202Ă—630 88.2 KB

2 Likes
3

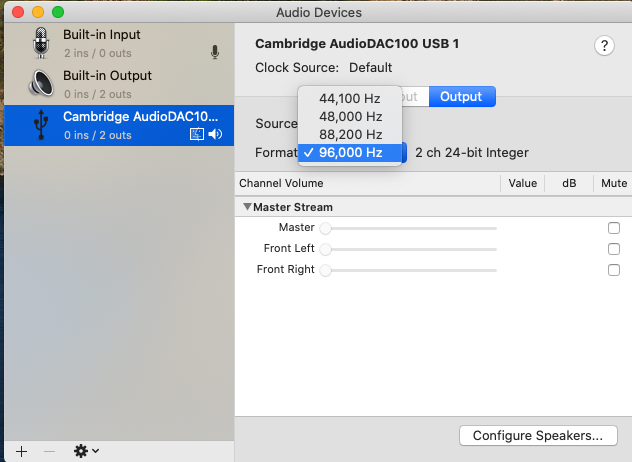

I hadn’t. But it turns out it only goes to 96 also. Is this a Mac hardware limitation, perhaps?

Screenshot 2023-06-17 140747

4

Solved! While floundering around the internet from the mac specs side I found that the DACMagic 100 needed to be manually switched from USB 1.1 to 2.0. That did it.
So maybe all my stuff is just too old. Good thing I have a birthday coming up…

5

Happy you found a solution. If you’re looking for an inexpensive DAC that nearly tops the list on Audio Science Review check this one out:
