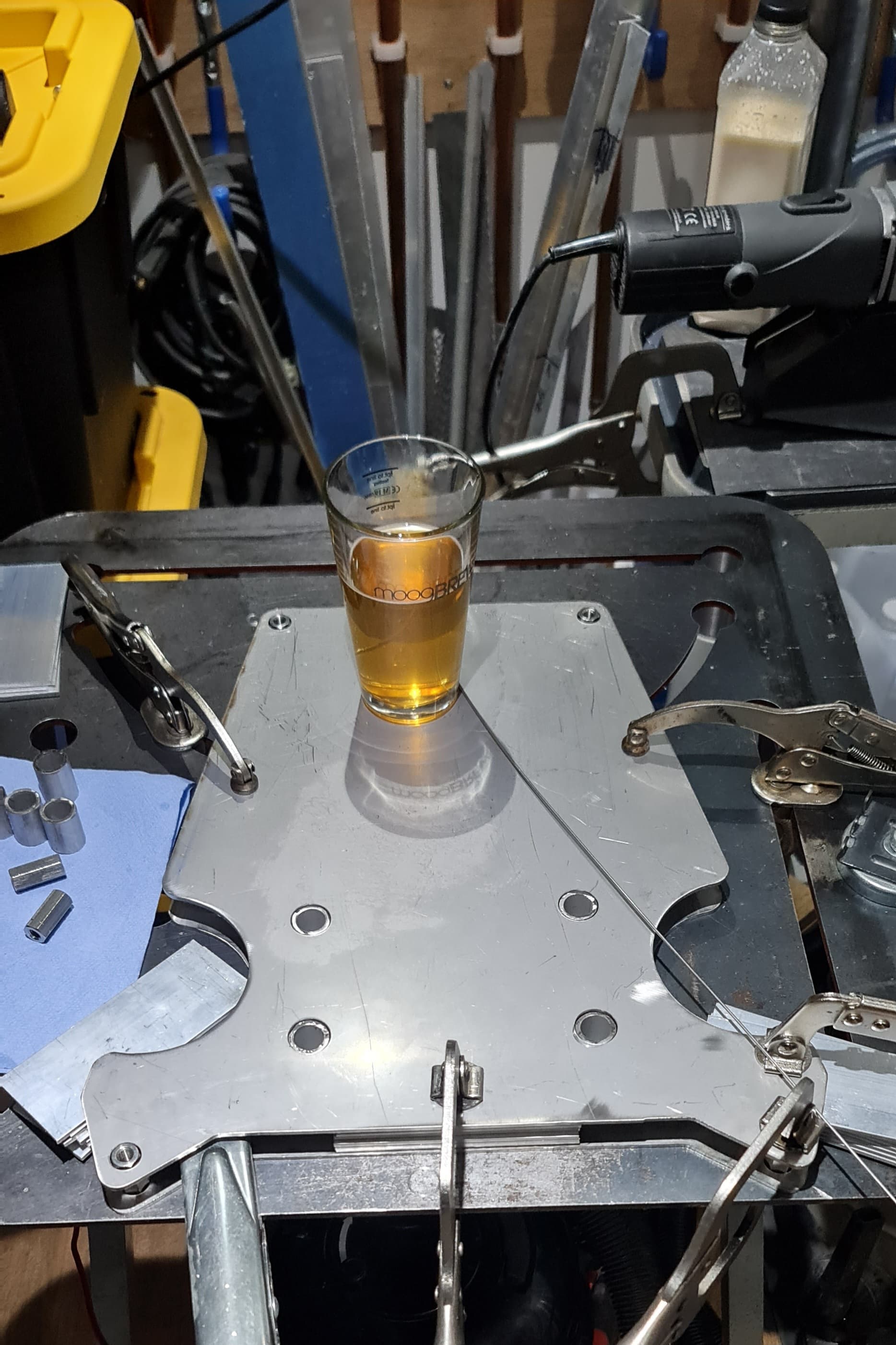

Clamped up and all ready for the first welds:
Welder lubricant is a 1/3 of a pint of Moogbrew “Pretty in Pink”, a pink peppercorn infused saison from my local micro-brewery and taproom.
6 Likes
way to go with that brewskie!!
1 Like
Slow progress this week. It’s been my third on-call week in the last five and a horrifically busy one.

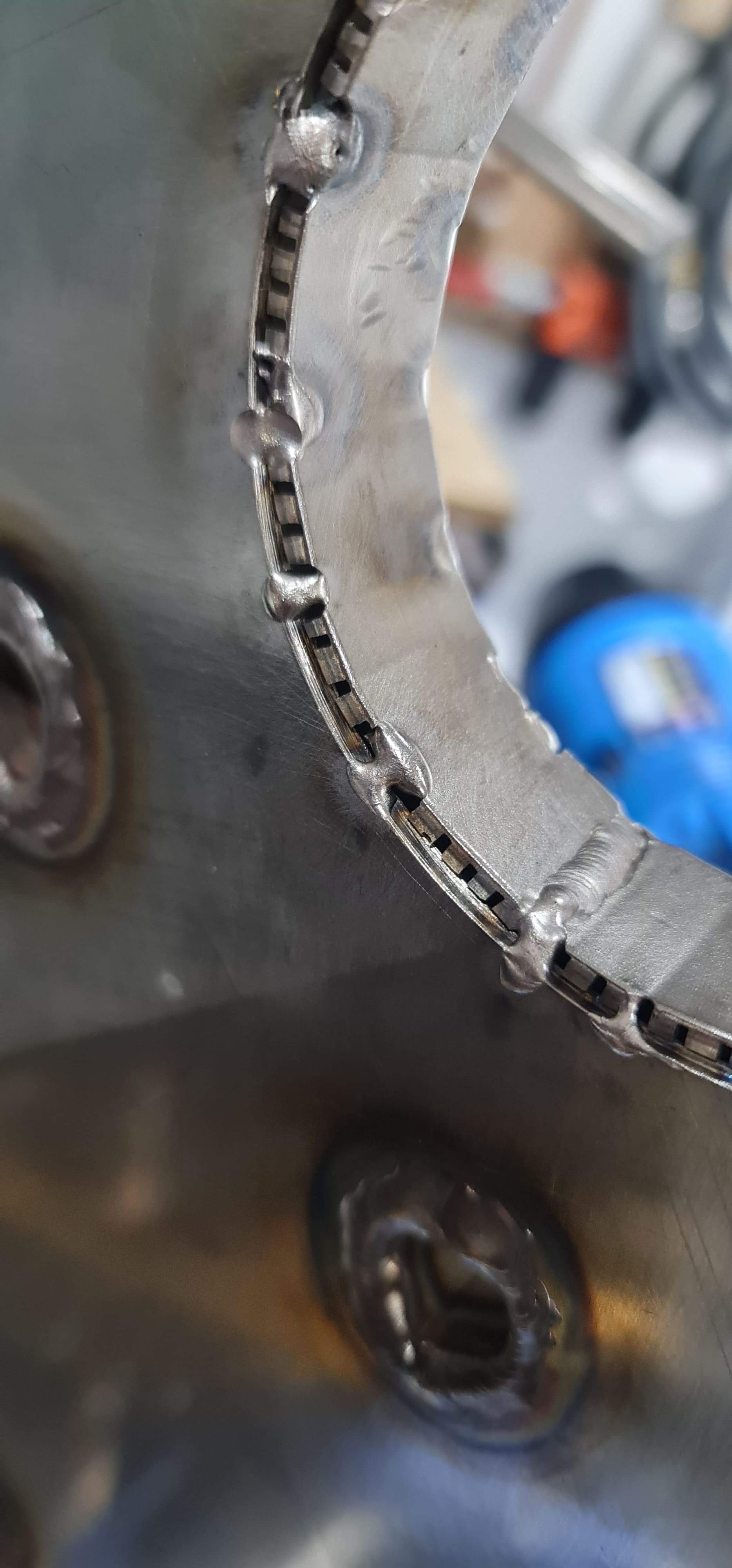

Also, as I feared, 25 x 3 mm is not so easy to bend, so I’m back to kerf cutting and bending, this time using the metal bandsaw:
Excuse the slightly ropey tack welds. I was trying to hold both the filler rod and metal in place with one hand and the TIG torch on the other. It’ll tidy up nicely when I run the weld bead.
Also, I’ve had a setback with my Argon supply. I’ve run out and Linde/BOC now tell me they no longer deliver to residential addresses. So the 11 m³ of argon I was expecting this morning didn’t arrive. I could switch to a smaller cylinder type which I can comfortably handle and fit in the car (the 11 m³ weighs ~85 kg) but the gas cost almost doubles.
In the end, I’ve set up a new account with Air Products and I’m hoping my gas will arrive tomorrow.
7 Likes
those small welding problems for the DIY market…
I fear you’re the only one involved…
1 Like
I’ve no doubt it’s also had an effect on a few of the local one-man-band fabricators who work out of their home workshops.
Still, it seems there are viable alternatives.
1 Like
The finish on this build is next level, well done Graeme.
For anyone who has attempted a DIY speaker at home, they will know just how much skill is on display here. Such an amazing effort, and you should be super proud. Congratulations.
I would love to ask a few questions if possible.
- Is the shared frequency response a vector average of multiple listening positions?
- Can you share vertical & horizontal SPL response @ 10% increments in room, or contour plot.
- It seems Troels places very little emphasis on constant or uniform driver directivity when designing… it would be very interesting to understand beamwidth integration between drivers. A contour plot would provide some interesting data
- Are you able to share measured harmonic distortion, @ say 85db and 100db. Distortion V’s Frequency?
Cheers
Steve
Hi Steve, many thanks. I’ve certainly challenged my capabilities with this build!
I’ll do my best to answer your questions:
-
The frequency response is a straight RMS average of L & R frequency responses measured at a single listening position (where my head is when sitting in the sweet spot).
-
I should be able to do some more measurements of horizontal and vertical SPL response. Not sure how I would go about making a contour plot though?
-
Indeed, he does seem to place little emphasis on constant directivity, although generally, his measurements of horizontal and vertical dispersion aren’t bad:

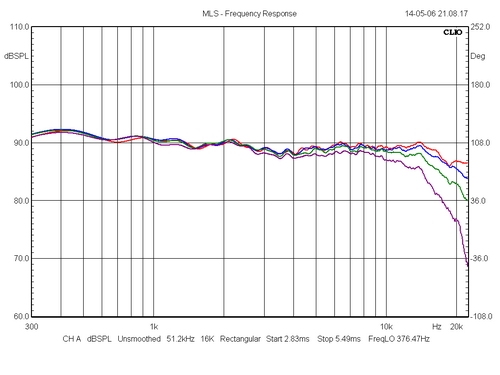

Horizontal dispersion: 0, 10, 20 and 30 deg. (Red, blue, green and purple).

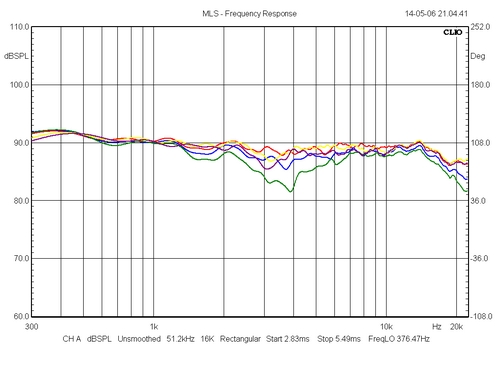

Vertical dispersion from 1 metre distance. Starting position = between M and T = red graph. Blue = - 10 cm, green = -20 cm. Yellow = + 10 cm, purple = + 20 cm.
- This I can certainly do.
Might be a few weeks before I can do the extra measurements. I’m feverishly working on finishing the plinths at the moment and we’re off on holiday to Scotland for a couple of weeks. Measurements will need to be done when Mrs Mad Scientist is out, especially the 100 dB distortion ones.
7 Likes
Apologies for the recent lack of activity. My gas delivery took nearly a week, so I was out of action on stainless welding.
Quite a bit of shifting stuff around to manoeuvre in the new 47 litre, 230 bar, 86 kg Argon cylinder. New regulator, longer gas hose (these things are tall!)) Finally finished the welds on the first plinth. Just the grinding and finishing to do, then on to the second one. But it’ll be a few weeks.
