· A connected audio device is not appearing in Roon
What type of Zone is affected by this problem?
· *Directly-connected Zones* are affected.
Is your RoonServer machine running MacOS 15 Sequoia or above?
· I still can't see my endpoints as available Zones.
Is the affected network Zone connected with Ethernet or WiFi?
· Ethernet
Which network audio protocol is the Zone using with Roon?
· Chromecast
Does the device show up at all in Roon Settings -> Audio?
· Yes, it shows up there, but it isn't Enabled
Does the "Enable" button unlock the Zone?
· I can Enable the Zone, but the Zone disappears
Does the device play audio from another source when using the same connection?
· The device has no problems with another audio source
If the device has multiple output options, do the other options work as expected?
· Multiple output types are affected
Is the device using the latest firmware as per the manufacturer?
· Firmware is up-to-date but the issue remains
Do you have an approximate timestamp of when the issue last occurred?
· Latest track “Trapper Man” by Mark Knopfler. Time late evening 11/18 Eastern Time.
What are the make and model of the affected audio device(s) and the connection type?
· Ferrum Wandla USB C and HDMI ARC
Describe the issue
New Roon One setup. IPad interface. Ferrum Wandla Dac with USB C and HDMI ARC inputs. Roon HDMI out appears in audio, but connecting to Wandla HDMI ARC does not work. No USB A out appears in Roon audio, thus Connecting roon USB A to Wandla USB C in also does not work. Appropriate Wandla input selected. Display shows no signal, no sound comes through.
Describe your network setup
Asus XT9 router, Cat 6 shielded ethernet cable to Roon One
Torben_Rick
(Torben - A Dane living in Hamburg - Roon Lifer)
2
Ferrum Wandla is not “Roon Ready” or “Roon Tested”
It will show up if using Roon Remote App running on Windows PC, directly connected to WANDLA via USB and installing USB AISO driver:
As @Torben_Rick mentioned, this DAC likely doesn’t have Linux drivers avaliable. To use it with the Nucleus, you’ll need a Roon Bridge device (such as Windows or Mac PC) to facilitate the connetion to the device using their proprietary driver.
Assuming the OP is using a Roon Nucleus One running ROCK (Linux) there shouldn‘t be any drivers needed to make a direct USB connection to WANDLA. Works fine for me.
Possible issues to check for:
cable connection, try different usb A - C cable, different USB port on nucleus one
Auto input selection of WANDLA: are other devices connected? Try disabling auto input selection in Wandla settings and disconnect all other devices, select USB input
auto off function of Wandla: the dac goes into standby after a certain amount of inactiviy (5 min default) but should remain visible in Roon via USB. Check settings and disable for testing purposes.
Mentioning Chromecast in the OP post puzzles me.
Also it seems to intitially work (device detected in roon audio settings) but then it’s disappearing after enabling the device. This should not happen and might be the issue here.
Some Screenshots might be helpful to show whats going on.
Not an option. Sitting in my living room chair with a Ferrum stack and an ipad. No pcs anywhere near. If. Pc was near I would set up a Roon server on that. Looks like this just won’t work. Hope I can return the Nucleus One.
Do i understand correctly that you tried different cables and also a different DAC with direct USB connection to Nucleus One without success?
This would point to a faulty USB port on Nucleus One IMHO.
Or Roon uses new hardware in Nucleus One and forgot to Update USB chipset drivers in RoonOS.
HDMI shouldn’t work anyway. It’s HDMI ARC, so it would work with an HDMI ARC output of a TV for example.
If your iPad is relatively new and already has an USB C connector you could try connecting it to WANDLA using the USB C - C cable provided with the iPad for charging. WANDLA should be available as device in Audio Settings in the Roon App on iPad.

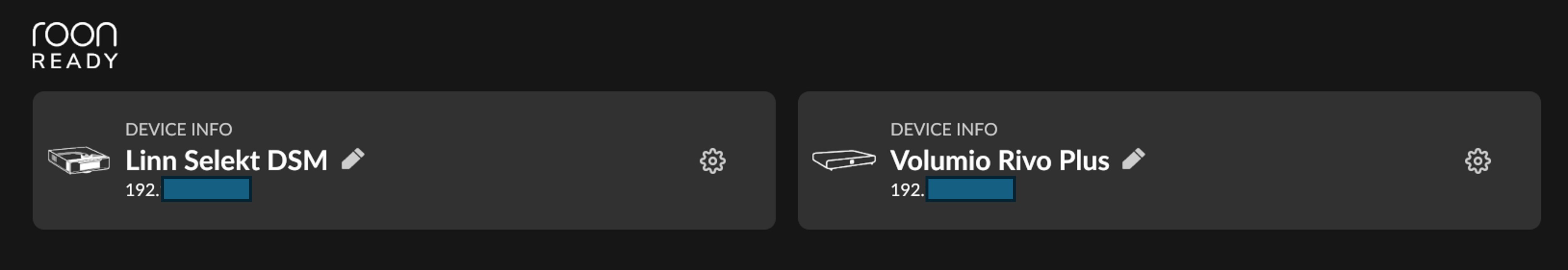

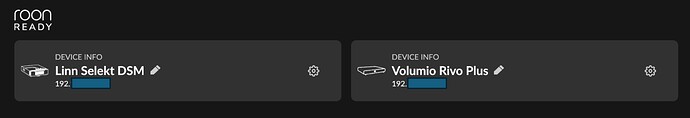

Please share a screenshot of the adio settings page with Wanda connected to rule out “error 40”
