Migration from NUC to NAS successful with one network issue

[KMM]

Moved from a NUC10 to a Synology 720+ (beefed up with memory and cache SSD) without major problems. Performs well with four endpoints of which two are running room correction.

All good, but one issue gets me to my limits and beyond:

I want a second,separate location for the Roon backup for added data .security. Primary setup is simple with a backup location in the Roon folder on the NAS which is backed up daily as a whole.

Now with the Roon server running on the the NAS (Linux based I believe) I cannot connect to a windows network drive that is attached to my fritzbox.

I made sure that in the fritzbox all permissions, passwords etc are correct and I have no issues connecting to that drive from any of my 4 windows machines on the network.

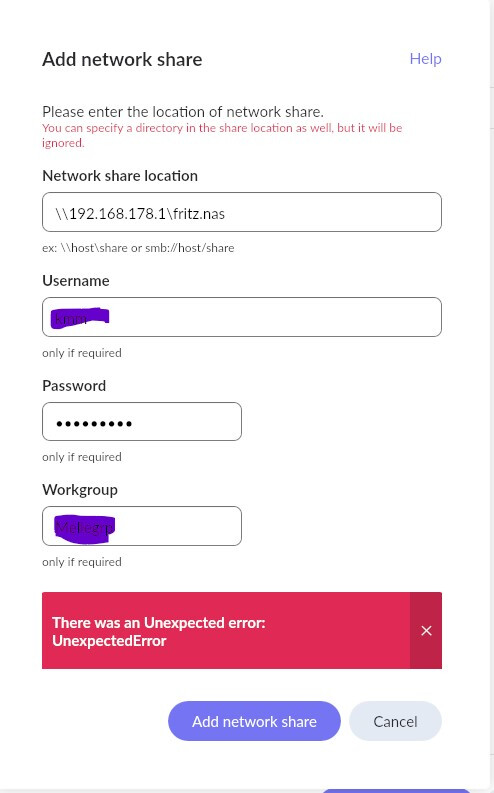

Now here I try to set up a new network share for the backup of the roon database using the interface Roon provides.
I tried using the windows syntax or the linux smb syntax to connect, but nothing. I always get at first the ‘can’t find network path’ error and then some when I add the network credentials.

This was never an issue when I ran the Roon server on my NUC.

Any help is greatly appreciated

[BlackJack]

@KMM

This was never an issue when I ran the Roon server on my NUC.

This is supposed to not work when running the RoonServer package on DSM7:

Roon Server on Synology DSM 7 Situation

I have put together a beta build of Roon Server for DSM7. It might still have issues and I am researching if they can be solved. Currently these issues are known: New audio files not added immediately to Roon’s Library Network shares can’t be mounted within Roon (See current workaround below) AAC streams might fail there is no audio support for local USB Audio devices (and as it currently seems, it won’t be possible) Network shares require root permissions, which are no longer allowed for T…

Maybe these instructions be of help to you:

Unable to add network share on QNAP NAS

@Ivan_Guoh, from your first post I understand the following. Your Roon Core is running on your Synology DS220+ running DSM7 and you want to write Roon Backups to a your QNAP TS-509. You are trying to create a share to your QNAP within Roon. If that’s the situation: it’s not possible. In DSM7 within a package you no longer can create an SMB share to an other device. Try the following. In DSM go to File Station. Within File Station mount the remote folder on your QNAP to your Backup folder on th…

Roon on DSM 7: Backup fails

The issue here is probably, that apps on DSM7 can’t establish network connections (to strengthen security of your Diskstation). What you can do is establish the network mount in FileStation. You can create a new folder (e.g. “RoonServer-Backup-Mount”) in your database Then click on “Tools” → “Mount remote Folder” → “CIFS Shared Folder” [Bildschirmfoto 2021-11-01 um 19.30.59] Enter your credentials and info for the remote shared folder and select the just created folder as a mounting point. …

[KMM]

Thank for all the links. Now off to reading and hopefully find a way around it.

[Alfred_van_Hoorn]

@KMM, from DSM and onwards packages cannot not connect to network devices. But there is a workaround.

In File Station on your NAS create a directory specific for your network bachups.Then (still in File Station) connect this directory to the network device where the backup has to be written (right click on the created directory and choose ‘add a network connection’ or something alike). Then in Roon for backups you can choose the created directory on your NAS. Backups will then be written to your network device.

[KMM]

@Alfred_van_Hoorn @BlackJack

Success. Added a new shared folder on the 720+ volume and within that I created a sub-folder which I mounted on a shared USB storage in one of my NUCs. The created shared folder showed up in the backup location option for RoonServer. Pretty cool and thanks a lot.

Now I need to figure how I can do this using a SSD attached to my fritz NAS which would be the optimum solution.

[Alfred_van_Hoorn]

Sadly I cannot help you with that; I don’t have a Fritz.

[KMM]

Success here as well. Configured a HDD as NAS drive on Fritzbox and created a network drive.
Ensured that the correct permission were present for the network drive.

Then created a new shared folder on the 720+ under control panel und created two subfolders on it using file manager. Then mounted both folders on the fritzbox with the correct permissions and passwords for the fritzbox.
One subfolder contains the Roon database backup and the other one the entire DSM backup.
Backup of RoonServer finds it and so does Hyperbackup. Looks like I am all set and now I have the redundancy I wanted along with a streamlined setup. Thanks again for the valuable input form both of you.

[KMM]

Have to correct myself as to the DSM backup on a remote network drive. Does not work and creates a copy on the originating volume if you don’t check your work. Only way out is to add another Synology NAS and run hyper vault on it. With that one, you can easily connect and have a second backup of the DSM volume. Now the 720+ and an attached USB backup drive reside in a home office room and the NAS DS214 with backup duties in the top floor hidden behind a closet. One backup per week on this one and daily backups on the USB HD.
Now I got belt and suspenders to keep my pants in the right place…
