The Best NUC for ROCK?

I use a NUC7i5 and I don’t have dropouts with tidal MQA and DSP enabled… The issue might be something else.

1 Like

That is good to hear. A few people above say I’m not correct to blame the Roon Core on the NUC for the issue. I hope that is the case. Given that I followed the instructions closely, I have no idea what might be wrong. Oddly, I’m listening over a wireless connection right now with no issues, but had drop outs with a wired connection last night. Next step for me is moving my music to an internal drive for both convenience and the possibility it will help. I don’t want to hijack this topic, so I’ll open a new one if/when I need more help. Thanks all.

Hi Nick, I didn’t say your issues aren’t Core related. I specifically mentioned the horsepower itself wouldn’t be the issue… I’ve done significantly more CPU intensive stuff with the same model NUCi7 you have.

Anyway I’m sure support with help you solve the issues.

Cheers mate

The issue turned out to be a faulty ethernet cable. Everything is working great now. I’m back in love with Roon.

1 Like

(Roon Rock on NUC7i7DNH)

The processing speed is only displayed up to 99.9, is that so wanted?

Yes, no problem. A number higher than 1.3x is considered the ‘safe zone’, so no problem at all if you’re seeing 99.9

1.3x can be ok, but i wouldnt like it to be below 2.0x – you don’t want to hose your audio stream processing just because metadata updates occurred or you did a search/focus/heavy-artist-page-load

1 Like

Cool. The old 1.3x recommended safe zone is revised to 2.0x.

I can only recommend the NUC7i7DN, fast and he has in my configuration (2x4GB G.Skill RipJaws DDR4-2400 (RAM), 250 GB Samsung SSD 860 EVO M.2 (System), 250GB Samsung SSD 840 (Data) and Akasa Plato X7D (Case)) only a power consumption of 5W.

2 Likes

My NUC7i7DN has such power consumption only in idle. During playback (DSP enabled: all -> DSD256) the power consumption is around 9 Watts. The maximum power consumption (during starting) is approximately 17 W.
(Samsung 860 Evo 4 TB has no power consumption in idle and maximum 1.6 W during playback)

1 Like

In Settings->Library, check if files are being analyzed. You can set the speed to throttled to keep the CPU usage down, which will mean a lower power draw.

All files already were analyzed.

Why do you think the NUC7i7BNH is a ‘bit underpowered for Rock’ please explain your thinking.

1 Like

While I prefer to have my Roon Server outside of the listening room (like I had in my previous house), my current setup in my apartment needs to have my Roon Core inside my listening room unfortunately.

So I’ve picked up the NUC7i7DNHE with an Akasa Plato X7D fanless case.

It took a few hours to put together because I’m extremely slow but also because I triple checked all connections because I never want to open it again.

The beauty with this is not just the fanless case with no moving parts but it’s also in a solid case that I can take with me when I travel.

There’s overkill here. I most definitely didn’t need 250gb for the M.2 SATA SSD drive but it was on sale for not much more than a 120gb WD SSD. Additionally, with 1 x 16gb DDR4 installed and the 2.5" 250gb SSD installed (no longer needed in my Synology NAS), if I want to repurpose this machine for a fanless Windows machine later, it’s ready to go without having to open up the case ever again.

5 Likes

@dabassgoesboomboom

That’s an awesome build! Thanks for sharing!

The NUC 7i7DNxx makes an excellent Roon ROCK. It’s what we’ve been using recently with great success.

1 Like

Cheers Brian. As soon as @brian confirmed it was officially supported by Roon for ROCK builds, I pulled the trigger on this purchase.

I haven’t built a computer in a long while, so I took a deep breath as I pressed the power button and prayed to the HiFi Gods that the thing would power on… hehe. All good though. I’m very happy with it’s performance.

2 Likes

Is anyone else here using the Plato X7D case with a NUC7i7DNxx?

I had a small question for those using this same case.

Cheers in advance.

What was the total cost?

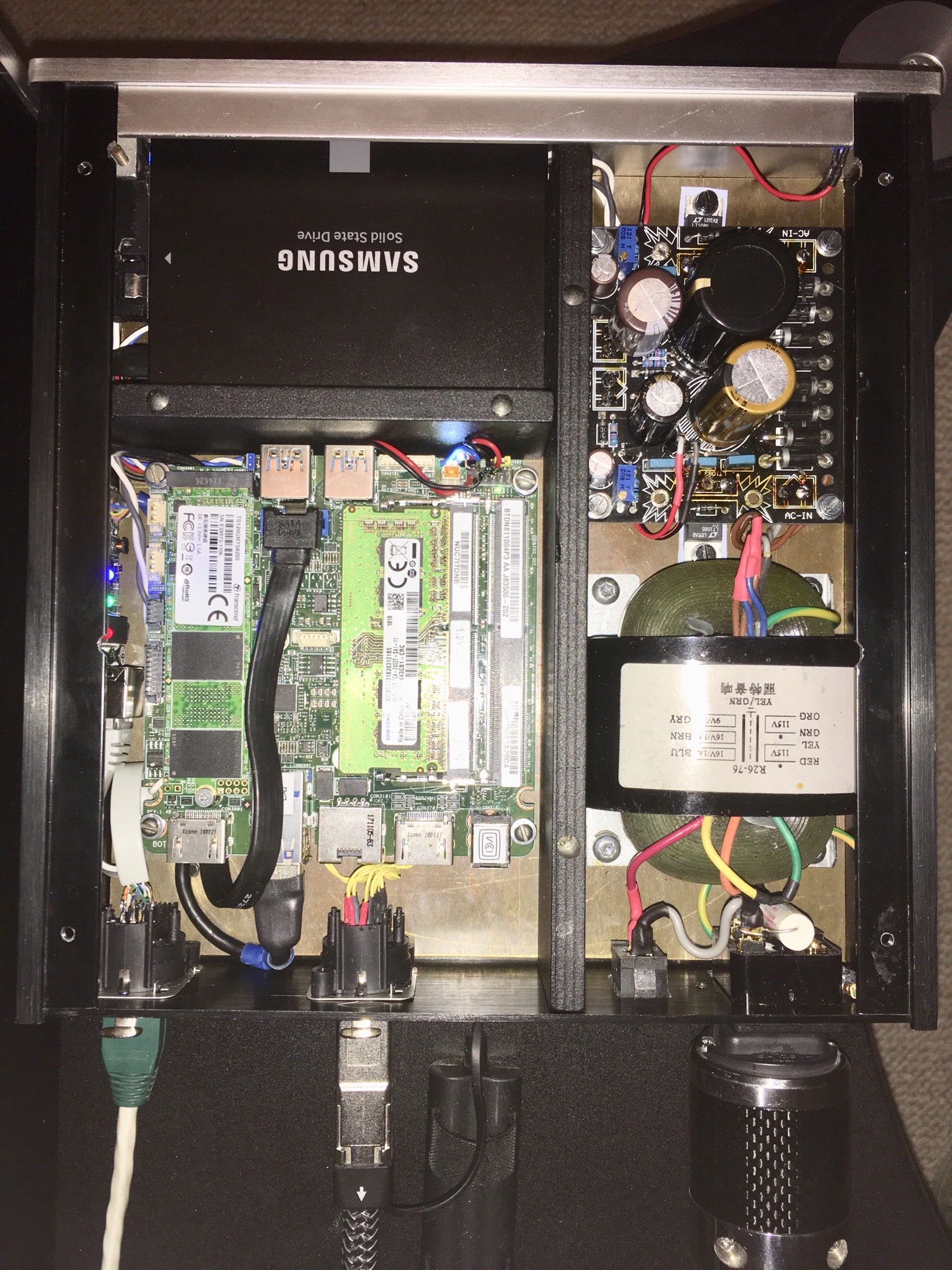

OK! And there is my Best NUC for ROCK in DIY full aluminum fanless case with usb ethernet adapter and linear PSU inside :wink:

10 Likes
